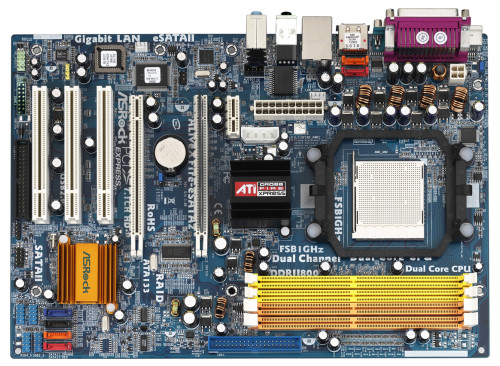

ASRock ALIVEXFIRE-ESATA2 R3.0, ATI CrossFire Xpress 1600 (RD480) SB600 /1000FSB/1xPCI-Ex16/2xPCI-Ex8/1x PCI-EX1/4xDDR2-800/4xSATA2 RAID 0 1 10/2xeSATA/1xATA/6-ch sound/2xUSB 2.0/G-LAN/ATX { ALIVEXFIRE



Preks apibūdinimas/Item:
   ASRock ALIVEXFIRE-ESATA2 R3.0, ATI CrossFire Xpress 1600 (RD480) SB600 /1000FSB/1xPCI-Ex16/2xPCI-Ex8/1x PCI-EX1/4xDDR2-800/4xSATA2 RAID 0 1 10/2xeSATA/1xATA/6-ch sound/2xUSB 2.0/G-LAN/ATX { ALIVEXFIRE
Gamintojas/Maker: ASROCK
Modelis/Model: ALIVEXFIRE-ESATA2-R3-0
Gamintojo Part/No: 032697
Nuoroda/URL link: http://www.asrock.com/index.asp
Nuoroda Matrix Uab: http://www.deze.lt/products/ASROCK_ALIVEXFIRE-ESATA2-R3-0_032697.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  1. Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  2. AMD 480X CrossFire™ Chipset
  3. ATI™ SB600 Chipset
  4. AM3 CPU Ready!
  • AMD LIVE!™ Ready
  • Supports ATI™ CrossFire™
  • Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
  • Supports Dual Channel DDR2 1066 with AM2+ CPU, and DDR2 800/667/533 with AM2 CPU, with 4 DIMM slots, maximum capacity up to 16GB
  • ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
  • Hybrid Booster - ASRock Safe Overclocking Technology
  • 1 x PCI Express x16 slot with PCIE Switch card or 2 x PCI Express Graphics slots for ATI™ CrossFire™
  • Supports PCIE Gigabit LAN 10/100/1000 Mb/s
  • 4 x SATAII 3.0 Gb/s, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
  • 2 x eSATAII 3.0 Gb/s connectors, support RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug" functions
  • HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices
  • Windows® Vista™ Premium 2008 Logo Ready
  • Supports ASRock Instant Boot
  • Supports Windows® XP Media Center Edition
  • Free Bundle: 1 x USB bracket
  • ASRock 6CH_eSATAII I/O: 2 eSATAII Ports, 2 ready-to-use USB Ports



 General
CPU - Support for Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- AMD LIVE!™ Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
- AM3 CPU Ready**

*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.

**This MB supports AM3 CPU by upgrading the BIOS version to P2.70 or later versions.
Chipset - Northbridge: AMD 480X CrossFire™
- Southbridge: ATI™ SB600
Memory - Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
- Max. capacity: 16GB*

*Support with AM2+ CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP, Windows® Vista™ and Windows® Vista™ 64-bit. For Windows® XP 64-bit with 64-bit CPU, there is no such limitation.
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
 Audio, Video and Networking
Graphics - n/a
Audio - 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - Supports ATI™ CrossFire™
- 1 x PCI Express x16 slot with PCIE Switch card or 2 x PCI Express Graphics slots for ATI™ CrossFire™
- 1 x PCI Express x1 slot
- 3 x PCI slots
Connector - 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
- 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports), support RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- SLI/XFire power connector
- CD in header
- Front panel audio connector
- 4 x USB 2.0 headers (support 8 USB 2.0 ports)
Rear Panel I/O ASRock 6CH_eSATAII I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 2 x Ready-to-Use USB 2.0 Ports
- 2 x eSATAII Ports
- 1 x RJ-45 Port
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature - Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 2 x SATA Data Cables (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
- 1 x HDMI_SPDIF Cable (optional)
- 1 x USB Bracket
- 1 x PCIE Switch Card
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
OS - Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE, WHQL
