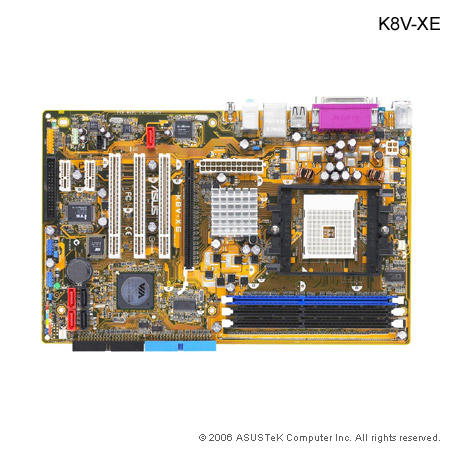

Asus K8V-XE VIAK8T980/FSB2000/PCI-E x16/PCI-E x1/3xPCI/3xDDR400 2xATA/4xSATA, 6-ch Sound/SPDIF, RAID 0.1,0+1, Ext. SATA RAID 0.1, LAN, ATX



Preks apibūdinimas/Item:
   Asus K8V-XE VIAK8T980/FSB2000/PCI-E x16/PCI-E x1/3xPCI/3xDDR400 2xATA/4xSATA, 6-ch Sound/SPDIF, RAID 0.1,0+1, Ext. SATA RAID 0.1, LAN, ATX
Gamintojas/Maker: ASUS
Modelis/Model: K8V-XE-VIAK8T980
Gamintojo Part/No: 010310
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_K8V-XE-VIAK8T980_010310.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): -Socket 754 for AMD Athlon 64 / Sempron CPU
-VIA K8T890 + VT8251 chipset
-1GHz / 800MHz HyperTransport
-PCI Express X16
-MAX 6 SATA (3Gb/s, including one External SATA) support Dual RAID
-Compliant with RoHS


CPU
Socket 754 for AMD Athlon 64 / Sempron CPU
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Cool'n'Quiet Technology
Chipset
VIA K8T890
VIA VT8251
Front Side Bus
1GHz / 800MHz
Memory
3xDIMM, max.3GB DDR400/333/266
ECC/non-ECC unbuffered memory
Expansion Slots
1 x PCI Express X16
2 x PCI E X1
3 x PCI
Storage/RAID
JMB 363 Controller support :
SATA RAID 0, 1 and JBOD (by 1x External SATA & 1x Internal SATA)

VIA VT8251 Southbridge support:
4 x Serial ATA (3Gb/s) support RAID 0, 1, 0+1(10), JBOD
2 x UltraDMA 133/100/66
Audio
ALC660 6-ch Azalia CODEC
Jack Sensing and Enumeration
S/PDIF out interface
LAN
Realtek RTL8201CL-LF 10/100M LAN
Overclocking Features
CPU Multiplier
SFS (1MHz FSB Adjustment), up to 300 MHz
C.P.R.(CPU Parameter Recall)
EZ Flash
USB
8 USB 2.0 ports
Special Features
C.P.R. (CPU Parameter Recall)
CrashFree BIOS2
MyLogo
EZ Flash
Back Panel I/O Ports
1 x Parallel
1 x External Serial ATA II
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Audio I/O
1 x RJ45
1 x S/PDIF Out
4 x USB
1 x COM
Internal I/O Connectors
2 x USB connector supports additional 4 USB ports
CPU / Chassis Fan connectors
24-pin EPS 12V Power connector
4-pin ATX 12V Power connector
IDE LED connector, power LED connector
SPDIF out connector
CD audio in
GAME/MIDI connector
Azalia Analog Front panel audio connector
BIOS
4 Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS CrashFree BIOS 2, ASUS MyLogo
Manageability
WOL by PME, WOR by PME, WOR by Ring
Support Disc
Drivers
ASUS PC Probe II
ASUS LiveUpdate
Anti-Virus Software
Accessories
Quick Start Guide
User's Manual
1 x UltraDMA 133/100/66 cable
1 x FDD cable
1 x I/O shield
1 x SATA Cable Kit (SATA/Power)
Form Factor
ATX 12"x 7.6" (30.5 cm x 19 cm)
