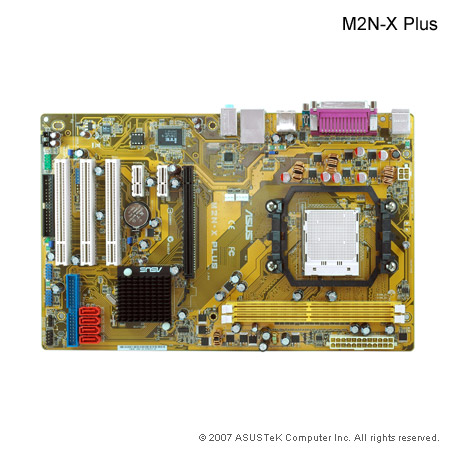

Asus M2N-X PLUS , nForce520 MCP FSB2000/PCI-Ex16/2x PCI-Ex1/3x PCI/2xDDR2-800/1xATA/4xSATA2 RAID 0 1 0+1 5 JBOD/6-ch Sound/LAN/10xUSB/ATX



(Tikrasis produktas gali skirtis nuo pavaizduoto paveikslėlyje, taip pat paveikslėlyje gali būti dalių, kurių nėra produkto komplektacijoje.)
Prekės apibūdinimas/Item:
 Asus M2N-X PLUS , nForce520 MCP FSB2000/PCI-Ex16/2x PCI-Ex1/3x PCI/2xDDR2-800/1xATA/4xSATA2 RAID 0 1 0+1 5 JBOD/6-ch Sound/LAN/10xUSB/ATX
- AMD AM2+ CPU Support Ready
- 2 x DIMMs,  DDR2 1066/800/667/533
- NVIDIA GeForce6100 /nForce430 Chipset
- 2000/1600 MT/s
- 1 x PCI Express x16 +2x PCI Express x1
- 4 x SATA 3Gb/s with RAID Support
- 10 x USB 2.0
- Conductive Polymer Caps in V-Core
Gamintojas/Maker: ASUS
Modelis/Model: M2N-X PLUS
Gamintojo Part/No: M2N-X PLUS
Nuoroda/URL link: http://www.asus.com/products.aspx?l1=3&l2=101&l3=345&l4=0&model=1869&modelmenu=2
Nuoroda Matrix Uab: http://www.deze.lt/products/M2N-X PLUS-018681.htm
Aprašymas PDF:
Svoris/Weight: ? Kg
Išmatavimai/Dimensions:
Komplektacija:
Garantija/Warranty: 36  /mėn./months
Aprašymas (ltu):
Description (eng):
CPU
AMD Socket AM2+ / AM2 Athlon64/Athlon64 FX/Athlon64 X2/Sempron Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
(AM2+ socket are backward compatible with AM2 socket)
Chipset
NVIDIA GeForce 6100/nForce 430
System Bus
2000/1600
Memory
2 x240-pin DIMM, Max. 4 GB, DDR2 1066/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
2 x PCIe x1
3 x PCI
Storage
1 xUltraDMA 133/100/66/33
4 xSATA 3 Gb/s ports Support RAID 0,1,0+1,JBOD
LAN
100/10 PHY
Audio
ALC662 6 -Channel High Definition Audio Azalia CODEC
Support Jack-Sensing, Enumeration, Multi-streaming
S/PDIF out on back I/O port
USB
10 USB 2.0 ports (6 on board & 4 on back)
Special Features
ASUS MyLogo
ASUS EZ Flash
ASUS CrashFree BIOS 2
ASUS install
ASUS Dram Burnt proof
ASUS Fanless thermal solution (heatsink)
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
6 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x4-pin ATX 12V Power connector
24 Power connector
1 x Speaker Connector
Front panel audio connector
CD/AUX audio in
System Panel
BIOS
8 Mb Flash ROM
CPU Multiplier
DMI AMI BIOS
PnP
WfM 2.0
SM BIOS 2.5
ACPI 2.0
Manageability
WOL/WOR by PME,WOR by Ring,Chasis Intrusion, PXE
Overclocking Features
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 300MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Accessories
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
2 SATA power cable
Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
NVIDIA MediaShield™ RAID
Form Factor
ATX Form Factor
12 inch x 7.6 inch ( 30.5 cm x 19.3 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories):
Brūkšninis kodas (EAN code): 4719543156995

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
