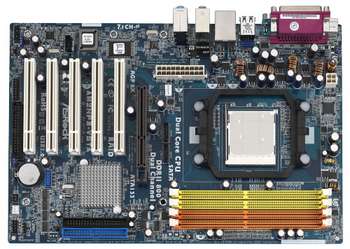

ASRock AM2NF3-VSTA, nF3 250/FSB1000/4xDUAL DDR2-533/AGPx8/5xPCI/8ch audio/LAN/2xATA/2xSATA/RAID 0, 1, JBOD/ATX



Prekės apibūdinimas/Item:
 ASRock AM2NF3-VSTA, nF3 250/FSB1000/4xDUAL DDR2-533/AGPx8/5xPCI/8ch audio/LAN/2xATA/2xSATA/RAID 0, 1, JBOD/ATX
Gamintojas/Maker: ASRock
Modelis/Model: AM2NF3-VSTA
Gamintojo Part/No: 011524
Nuoroda/URL link: http://www.asrock.com
Nuoroda Matrix Uab: http://www.deze.lt/products/AM2NF3-VSTA_011524.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty: 24 mėn
Aprašymas (ltu):
Description (eng):
Support CD: Drivers Utilities AntiVirus Software (Trial Version)
IDE connectors: 2 x Serial ATA 1.5 Gb/s connectors support RAID (RAID 0 RAID 1 JBOD) and Hot Plug functions
2 x ATA133 IDE connectors (support 4 x IDE devices)
1 x Floppy connector
1 x IR header
1 x Game header
CPU/C
Chipset: NVIDIA® nForce3 250
Expansion slots: 5 x PCI slots
1 x AGP 8X slot
Support OS: Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Memory: Dual Channel DDRII memory technology
4 x DDRII DIMM slots
Supports DDRII800/667/533
Max. capacity: 8GB
CPU support: Socket AM2 for AMD Athlon™ 64FX / 64X2 / 64 and Sempron Processors
Supports AMD''''s Cool ''''n'''' Quiet Technology
Supports Untied Overclocking Technology
Supports Hyper-Transport Technology
LAN: Realtek PHY RTL8201CL
Speed: 10/100 Ethernet
Supports Wake-On-LAN
Certification: FCC CE WHQL
Audio: C-Media CM6501 7.1 channel audio compliant with UAA architecture
BIOS: 4Mb AMI BIOS
AMI Legal BIOS
Supports Plug and Play
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
I/O ports: ASRock 8CH I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Serial Port: COM1
1 x Parallel Port (ECP/EPP Support)
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 Port
Audio Jack: Side Speaker
Accessories: Quick Installation Guide Support CD I/O Shield
Floppy/ATA 133 cables
1 x SATA data cable (optional)
1 x SATA 1 to 1 power cable (optional)
Form factor: ATX Form Factor: 12.0-in x 8.0-in 30.5 cm x 20.3 cm
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume: http://www.matrix.lt/lt/forum/index.php
Brūkšninis kodas (EAN code): 4711140874470

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
