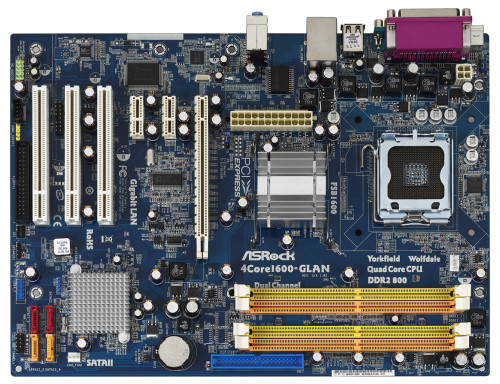

ASRock 4CORE1600-GLAN, intel P31/G31/FSB1600/ 4xDDR2-800/1xPCI-Ex16/2xPCI-Ex1/3xPCI/1xATA100/4xSATA2/4xUSB2.0/Gb-LAN/6-ch/ATX { 4CORE1600-GLAN }



Preks apibūdinimas/Item:
 ASRock 4CORE1600-GLAN, intel P31/G31/FSB1600/ 4xDDR2-800/1xPCI-Ex16/2xPCI-Ex1/3xPCI/1xATA100/4xSATA2/4xUSB2.0/Gb-LAN/6-ch/ATX { 4CORE1600-GLAN }
Gamintojas/Maker: ASROCK
Modelis/Model: 4CORE1600-GLAN
Gamintojo Part/No: 032709
Nuoroda/URL link: http://www.asrock.com/index.asp
Nuoroda Matrix Uab: http://www.deze.lt/products/ASROCK_4CORE1600-GLAN_032709.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  1. LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
  2. Intel® P31/G31 + ICH7 Chipsets
  • Compatible with all FSB1600/1333/1066/800MHz CPUs
  • Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
  • Dual Channel DDR2 800/667 (4 x DIMM slots) with max. capacity up to 4GB
  • 1 x PCI Express x16 slot
  • Supports PCIE Gigabit LAN 10/100/1000 Mb/s
  • 4 x SATAII 3.0 Gb/s connectors
  • HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.
  • 1 x WiFi/E header
  • Supports ASRock Instant Boot
  • Windows® Vista™ Premium 2008 Logo Ready

General
CPU - LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Compatible with all FSB1600*/1333/1066/800MHz CPUs
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

*In overclocking mode.
Chipset - Northbridge: Intel® P31/G31
- Southbridge: Intel® ICH7
Memory - Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 800/667 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB**

*Before you install memory module on this motherboard, please read below message to avoid any improper installation:

» Due to chipset limitation, if you plan to install three or four memory modules on this motherboard, please install only single-sided memory modules.
» To install two memory modules on this motherboard, please install them on DDRII_1 and DDRII_3 DIMM sockets.

For the detailed installation information, please refer to the user manual or quick installation guide.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
 Audio, Video and Networking
Graphics - n/a
Audio - 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B/RTL8111C
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots
- 3 x PCI slots
Connector - 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 3 USB 2.0 ports)
- 1 x WiFi/E header
Rear Panel I/O ASRock 6CH I/O Pro
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature - Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 Cables
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
- 1 x HDMI_SPDIF Cable (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE, WHQL
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
