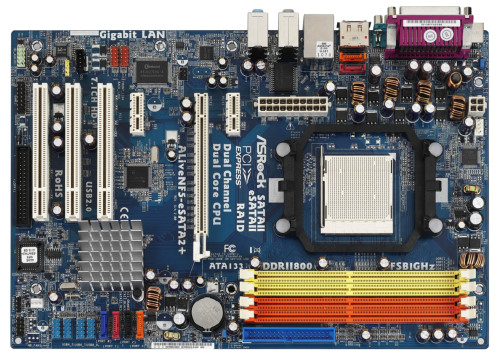

ASRock ALIVENF5-ESATA2+ R3.0 nForce 520/1000FSB/1xPCI-Ex16/2xPCI-Ex1/3xPCI/4xDDR2-800/ATA/4xSATA2 RAID 0 1 0+1 5 JBOD/1xeSATA/8-ch sound/G-LAN/ATX



Preks apibūdinimas/Item:
 ASRock ALIVENF5-ESATA2+ R3.0 nForce 520/1000FSB/1xPCI-Ex16/2xPCI-Ex1/3xPCI/4xDDR2-800/ATA/4xSATA2 RAID 0 1 0+1 5 JBOD/1xeSATA/8-ch sound/G-LAN/ATX
Gamintojas/Maker: ASROCK
Modelis/Model: ALIVENF5-ESATA2+
Gamintojo Part/No: 019007
Nuoroda/URL link: http://www.asrock.com/index.asp
Nuoroda Matrix Uab: http://www.deze.lt/products/ASROCK_ALIVENF5-ESATA2+_019007.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  1. Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  2. NVIDIA® nForce 520 Chipset
  • FSB 1000 MHz (2.0 GT/s) processor
  • AMD LIVE!™ Ready
  • Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
  • Supports Dual Channel DDR2 1066 with AM2+ CPU, and DDR2 800/667/533 with AM2 CPU, with 4 DIMM slots, maximum capacity up to 16GB
  • ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
  • Hybrid Booster - ASRock Safe Overclocking Technology
  • 1 x PCI Express x16 slot
  • Supports PCIE Gigabit LAN 10/100/1000 Mb/s
  • 4 x SATAII 3.0 Gb/s, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and "Hot Plug" functions
  • 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports), NCQ, AHCI and "Hot Plug" functions
  • 2 x IEEE 1394 headers
  • HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.
  • 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
  • Windows® Vista™ Premium Logo Ready
  • Supports Windows® XP Media Center Edition
  • Free Bundle: 1 x USB+1394 bracket, providing 2 additional USB 2.0 ports and 1 IEEE 1394 port
  • ASRock 8CH_eSATAII I/O: 2 eSATAII Ports, 2 ready-to-use USB Ports

General
CPU - Support for Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- AMD LIVE!™ Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology

*If you use AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.
Chipset - NVIDIA® nForce 520
Memory - Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB**

*Support with AM2+ CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
 Audio, Video and Networking
Graphics - n/a
Audio - 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - 3 x PCI slots
- 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots
Connector - 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports), support NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- 1 x HDMI_SPDIF header
- 2 x IEEE 1394 headers
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 4 x USB 2.0 headers (support 8 USB 2.0 ports)
Rear Panel I/O ASRock 8CH_eSATAII I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 2 x Ready-to-Use USB 2.0 Ports
- 2 x eSATAII Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Free Bundle: USB+1394 bracket, providing 2 additional USB 2.0 ports and 1 IEEE 1394 port
 Other Features / Miscellaneous
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cable (optional)
- 2 x SATA 1 to 1 Power Cable (optional)
- 1 x HDMI_SPDIF Cable (optional)
- 1 x USB+1394 bracket
Hardware Monitor - CPU Internal Temperature Sensing
- CPU Ambient Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm
OS - Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE, WHQL
