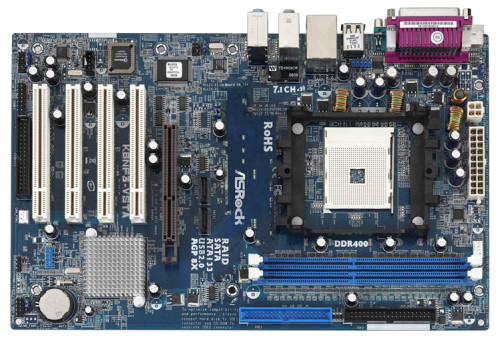

ASRock K8NF3-VSTA NVIDIA NFORCE3 250, 800FSB/4xPCI/1xAGP8X/2xDDR400/2xATA/2xSATA/RAID 0,1 JBOD/8-ch sound/LAN/ATX { K8NF3-VSTA }



Preks apibūdinimas/Item:
   ASRock K8NF3-VSTA NVIDIA NFORCE3 250, 800FSB/4xPCI/1xAGP8X/2xDDR400/2xATA/2xSATA/RAID 0,1 JBOD/8-ch sound/LAN/ATX { K8NF3-VSTA }
Gamintojas/Maker: ASROCK
Modelis/Model: K8NF3-VSTA
Gamintojo Part/No: 015279
Nuoroda/URL link: http://www.asrock.com/index.asp
Nuoroda Matrix Uab: http://www.deze.lt/products/ASROCK_K8NF3-VSTA_015279.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  1. Socket 754 for AMD Athlon™ 64 and Sempron processors
  2. NVIDIA® nForce3 250 Chipset
  • FSB 800MHz, Hyper-Transport Technology and AMD Cool 'n' Quiet Technology
  • Supports DDR400/333/266 with 2 DIMM slots, maximum capacity up to 2GB
  • Hybrid Booster - ASRock Safe Overclocking Technology
  • Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed AGP/ PCI Buses
  • 1 x AGP 8X slot
  • 2 x SATA 1.5Gb/s connectors, supports RAID (RAID 0, 1, JBOD) and "Hot Plug" functions
  • 7.1 CH Windows® Vista™ Premium Level Superior Audio (C-Media CM6501 Audio Codec with UAA architecture), 10/100 Ethernet LAN
  • Windows® Vista™ Premium 2007 Logo Ready
  • ASRock 8CH I/O: 4 ready-to-use USB Ports, 7.1 channel audio jacks


General
CPU - Socket 754 for AMD Athlon™ 64 and Sempron processors
- Supports AMD's Cool 'n' Quiet Technology
- FSB 800 MHz
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
Chipset - NVIDIA® nForce3 250
Memory - 2 x DDR DIMM slots
- Supports DDR400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
 Audio, Video and Networking
Graphics - n/a
Audio - 7.1 CH Windows® Vista™ Premium Level Superior Audio (C-Media CM6501 Audio Codec with UAA architecture)
LAN - Realtek PHY RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - 4 x PCI slots
- 1 x AGP 8X slot
Connector - 2 x SATA 1.5 Gb/s connectors, support RAID* (RAID 0, RAID 1, JBOD) and "Hot Plug" functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB23 ports on the I/O panel)

*RAID function is only available under Windows® 2000, XP or XP 64-bit OS.
Rear Panel I/O ASRock 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- Audio Jack: Side Speaker / Rear Speaker / Central Bass / Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm
OS - Microsoft® Windows® 2000/XP/XP 64-bit/Vista™/Vista™ 64-bit compliant
Certifications - FCC, CE, WHQL
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
