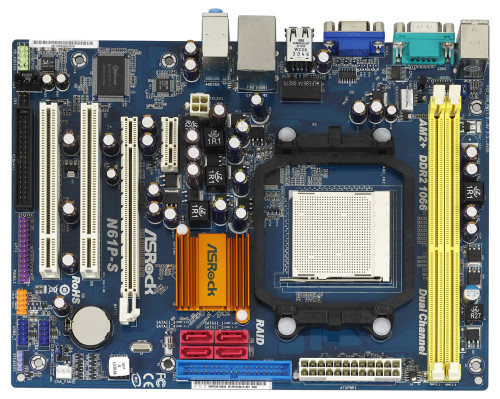

ASRock N61P-S, GeForce NF6150-431/1000FSB/1XPCI-Ex16/1xPCI-Ex1/2xPCI/2xDDR2-800/integr 256MB dual VGA/HDMI/4xSATA2 RAID 0 1 0+1 5 /1xATA133/6-ch sound/LAN/mATX { N61P-S }



Preks apibūdinimas/Item:
   ASRock N61P-S, GeForce NF6150-431/1000FSB/1XPCI-Ex16/1xPCI-Ex1/2xPCI/2xDDR2-800/integr 256MB dual VGA/HDMI/4xSATA2 RAID 0 1 0+1 5 /1xATA133/6-ch sound/LAN/mATX { N61P-S }
Gamintojas/Maker: ASROCK
Modelis/Model: N61P-S
Gamintojo Part/No: 032699
Nuoroda/URL link: http://www.asrock.com/index.asp
Nuoroda Matrix Uab: http://www.deze.lt/products/ASROCK_N61P-S_032699.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  1. Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  2. NVIDIA® GeForce 6150SE / nForce 430 Chipset
  3. AM3 CPU Ready!
  • FSB 1000 MHz (2.0 GT/s)
  • Supports Dual Channel DDR2 1066 with AM2+ CPU and DDR2 800/667/533 with AM2 CPU, 2 DIMM slots, maximum capacity up to 8GB
  • ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
  • Integrated NVIDIA® GeForce6-class graphics, DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 256MB
  • 1 x PCI Express x 16 slot
  • 10/100 Ethernet
  • 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions
  • 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
  • Supports ASRock Instant Boot
  • Supports Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver, Extra ESD Protection
  • I/O Panel: 1 x VGA Port, 1 x RJ-45 LAN Port, 4 x Ready-to-Use USB 2.0 Ports


General
CPU - Support for Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
- AM3 CPU Ready

*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.
Chipset - NVIDIA® GeForce 6150SE / nForce 430
Memory - Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB**

*Support with AM2+ CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports Smart BIOS
 Audio, Video and Networking
Graphics - Integrated NVIDIA® GeForce6-class graphics
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
Audio - 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN - Realtek PHY RTL8201EL-GR/RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector - 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- ATA 133 Cables (optional)
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
