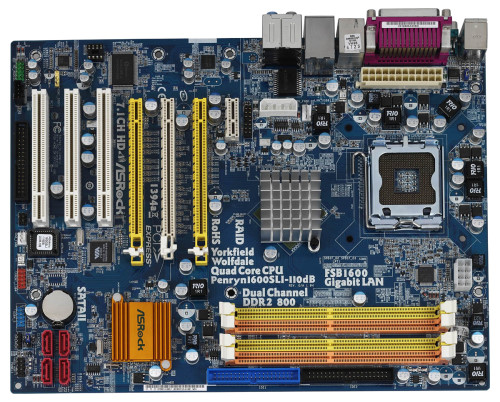

ASRock PENRYN1600SLI-110DB, NVIDIA 650iSLI nForce 430 /1600FSB/3xPCI-Ex16/1xPCI-Ex1/1xPCI/Dual 4xDDR2-800 max 8GB/2xATA133/4xSATA2 RAID 0 1 0+1 5/8-ch sound/G-LAN/ATX



Preks apibūdinimas/Item:
 ASRock PENRYN1600SLI-110DB, NVIDIA 650iSLI nForce 430 /1600FSB/3xPCI-Ex16/1xPCI-Ex1/1xPCI/Dual 4xDDR2-800 max 8GB/2xATA133/4xSATA2 RAID 0 1 0+1 5/8-ch sound/G-LAN/ATX
Gamintojas/Maker: ASROCK
Modelis/Model: PENRYN1600SLI-110DB
Gamintojo Part/No: 023596
Nuoroda/URL link: http://www.asrock.com/index.asp
Nuoroda Matrix Uab: http://www.deze.lt/products/ASROCK_PENRYN1600SLI-110DB_023596.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  1. LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
  2. NVIDIA® 650i SLI + NVIDIA® nForce 430 Chipsets
  3. All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
  4. Compatible with FSB1600/1333MHz CPUs
  • Supports Dual Channel DDR2 800/667/533 x 4 DIMM slots, maximum capacity up to 8GB
  • Supports NVIDIA® SLI™
  • 3 x PCI Express x16 slots (white @ x16 mode, yellow @ x8 mode)
  • Supports Gigabit LAN 10/100/1000 Mb/s
  • Supports 2 x IEEE1394 ports (one port on back panel, one header on board)
  • 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5) and NCQ functions
  • 1 x WiFi/E header
  • 7.1 CH Windows® Vista™ Premium Level HD Audio with Content Protection, supports DAC with 110dB dynamic range (ALC890 Audio Codec)
  • ASRock OC Tuner
  • Windows® Vista™ Premium 2008 Logo Ready
  • Free Bundle: ASRock SLI Bridge
  • ASRock WiFi_SPDIF I/O Plus : 1 x Coaxial SPDIF Out Port, 1 x Optical SPDIF Out Port, 1 x RJ-45 LAN Port with LED, 1 x IEEE 1394 Port


General
CPU - LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Compatible with all FSB1600*/1333/1066/800MHz CPUs
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

*In overclocking mode.
Chipset - Northbridge: NVIDIA® 650i SLI
- Southbridge: NVIDIA® nForce 430
Memory - Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS - 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB, SB, VTT Voltage Multi-adjustment
 Audio, Video and Networking
Graphics - n/a
Audio - 7.1 CH Windows® Vista™ Premium Level HD Audio with Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)
LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211B
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - 3 x PCI Express x16 slots (white @ x16 mode, yellow @ x8 mode)
- 1 x PCI Express x1 slot
- 3 x PCI slots
- Supports NVIDIA® SLI™
Connector - 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5) and NCQ functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- SLI/XFire power connector
- CD in header
- Front panel audio connector
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x WiFi/E header
Rear Panel I/O ASRock WiFi_SPDIF I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature - ASRock OC Tuner
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - 1 x ASRock SLI Bridge
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cables (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
- 1 x HDMI_SPDIF Cable (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE, WHQL
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
