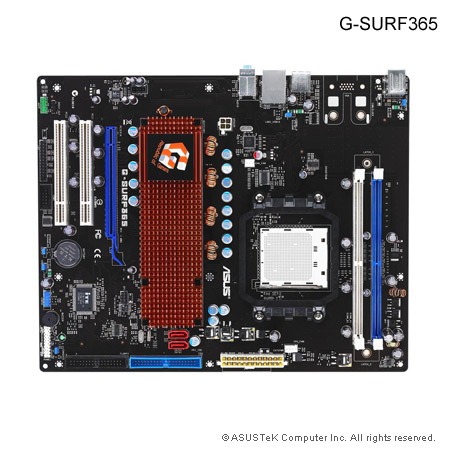

Asus G-SURF365, Internet Cafe design nForce630a /FSB2000/1x PCI-Ex16/2xPCI/2xDUAL DDR2-800/max 4GB/1xATA/2xSATA RAID 0 1JBOD/6-ch CODEC/6xUSB2.0/NVIDIA nFroce GB-LAN MAC with external Marvell/SPDIF/AT



Preks apibūdinimas/Item:
 Asus G-SURF365, Internet Cafe design nForce630a /FSB2000/1x PCI-Ex16/2xPCI/2xDUAL DDR2-800/max 4GB/1xATA/2xSATA RAID 0 1JBOD/6-ch CODEC/6xUSB2.0/NVIDIA nFroce GB-LAN MAC with external Marvell/SPDIF/AT
Gamintojas/Maker: ASUS
Modelis/Model: G-SURF365
Gamintojo Part/No: 023912
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_G-SURF365_023912.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - AMD AM2 Platform
- Dual-Channel DDR2 800
- Pin Fin Thermal Module
- CPU Level Up
- G-Guardian


CPU
AMD Socket AM2 Athlon64/Athlon64 FX/Athlon64 X2/Sempron Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
Chipset
NVIDIA nForce 630a
System Bus
2000/1600
Memory
2 x240-pin DIMM, Max. 4 GB, DDR2 800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
2 x PCI
Storage
Southbridge
1 xUltraDMA 133/100
2 xSATA 3 Gb/s ports Support RAID 0,1,JBOD
LAN
NVIDIA nFroce built-in Gigabit MAC with external Marvell 88E1116 PHY
Audio
ALC662 High Definition Audio 6 -Channel CODEC
USB
6 USB 2.0 ports (2 ports at mid-board; 4 ports at back panel)
Overclocking Features
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 300MHz at 1MHz increment
- Adjustable CPU Voltage at 0.0125V increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS MyLogo 3
ASUS EZ Flash 2
ASUS CrashFree BIOS 2
ASUS Q-Fan
ASUS CPU Level Up
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
6 -Channel Audio I/O
1 x G-Guardian
Internal I/O Connectors
1 x USB connectors supports additional 2 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector
1 x S/PDIF Out connector
x4-pin ATX 12V Power connector
Chassis Intrusion connector
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4
Manageability
WfM 2.0,DMI 2.0,WOL/WOR by PME,WOR by Ring, PXE
Accessories
User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 SATA power cable
1 x G-Guardian (1 set of memory guardian & 1 Back I/O guardian)
Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS LiveUpdate Utility
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
