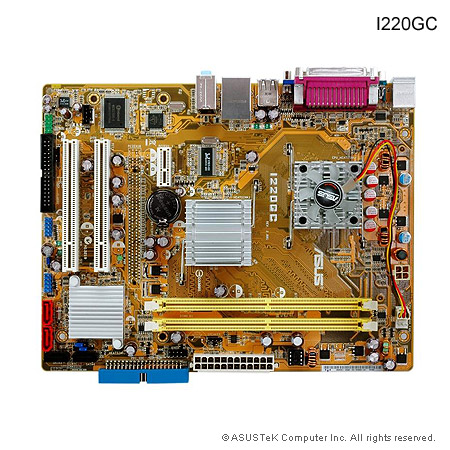

ASUS I220GC, i945GC/FSB533MHz/with CPU Celeron 220 onboard/2XDUAL DDR2-667 max 4GB/int VGA 224MB/1xPCI-Ex1/2xPCI/1xATA/4xSATA/6ch audio/LAN/8xUSB2.0/LAN/mATX { I220GC }



Preks apibūdinimas/Item:
 ASUS I220GC, i945GC/FSB533MHz/with CPU Celeron 220 onboard/2XDUAL DDR2-667 max 4GB/int VGA 224MB/1xPCI-Ex1/2xPCI/1xATA/4xSATA/6ch audio/LAN/8xUSB2.0/LAN/mATX { I220GC }
Gamintojas/Maker: ASUS
Modelis/Model: I220GC
Gamintojo Part/No: 032510
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_I220GC_032510.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - Intel Celeron 220 CPU mounted（without sokect.）.
- CPU TDP is low to 19w
- Intel 945GC/ICH7 Chipset
- CPU FSB 533MHz ;
- Dual-Channel DDR2 667/533
- 4x SATA 3Gb/s
- EZ Flash2 & Crashfree BIOS3


CPU
Integrated (FC-BGA6) Intel Celeron Processor 200 Series
Intel® EM64T and Execute Disable Bit Technologyready
Chipset
Intel® 945GC / ICH7
System Bus
CPU FSB 533MHz ; Chipset support 533/800/1066 MHz
Memory
2 x DIMM, for max. 4GB, DDR2 667/533MHz, non-ECC, un-buffered memory
Dual channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCI-E x1
2 x PCI 2.2
VGA
Intel Graphics Media Accelerator 950
Max. resolution:2048x1536@75Hz
Max. UMA Memory Size 224MB
Storage
Southbridge:
- 1 x UltraDMA 100/66
- 4 x Serial ATA 3Gb/s
LAN
Atheros L2 10/100
Audio
Realtek ALC662, 6-CH High-Definition Audio CODEC
USB
8 x USB2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special Features
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA
1 x Serial port
1 x Parallel port
1 x LAN (RJ45) port
4 x USB 2.0
6 Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
Front panel High Definition audio connector
1 x S/PDIF Out connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector
BIOS
8 Mb Flash ROM, AMI BIOS, PnP, ACPI2.0a, DMI2.0, WfM2.0, SM BIOS 2.4
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME
Accessories
1 x UltraDMA 100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 x SATA Power cable
I/O Shield
User's manual
Support Disc
Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software
Form Factor
uATX Form Factor, 9.6"x 7.4" (24.4cm x 18.87cm)
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
