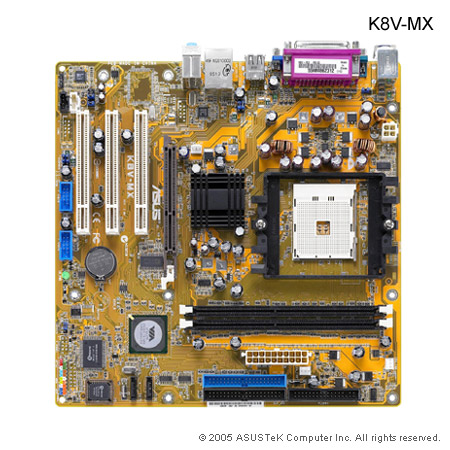

Asus K8V-MX VIA K8M800, FSB800/8xAGP/5xPCI/2xDDR 400, 2xATA133/2xSATA, 6-ch Sound/SPDIF, Video, RAID 0.1, Gb-e LAN, mATX



Preks apibūdinimas/Item:
 Asus K8V-MX VIA K8M800, FSB800/8xAGP/5xPCI/2xDDR 400, 2xATA133/2xSATA, 6-ch Sound/SPDIF, Video, RAID 0.1, Gb-e LAN, mATX
Gamintojas/Maker: ASUS
Modelis/Model: K8V-MX-VIA-K8M800
Gamintojo Part/No: 006096
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_K8V-MX-VIA-K8M800_006096.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - Supports AMD Socket 754 Athlon 64/ Sempron
- VIA K8M800 + VT8237R
- Front Side Bus 1600 MT/s
- DDR400/333/266
- AMD Cool 'n' Quiet Technology
- SATA (RAID0, RAID1 & JBOD)



CPU
Socket 754 for AMD Athlon 64 / Sempron
AMD Cool 'n' Quiet
Chipset
VIA K8M800
VIA VT8237R
Front Side Bus
1600MT/s
Memory
2 x DIMM, max. 2GB, DDR400/ 333/ 266, ECC, non-ECC, un-buffered memory
Expansion Slots
1 x AGP8X
3 x PCI
VGA
Integrated Graphics
Storage/RAID
2 x Serial ATA, RAID 0, RAID 1, JBOD
2 x UltraDMA 100/66/33
Audio
ADI AD1888 SoundMAX 6-channel CODEC
S/PDIF out interface
LAN
Realtek RTL8201CL 10/100M LAN PHY
USB
Max 8 USB2.0 ports
Special Features
Adjustable FSB/DDR ratio, Fixed AGP/PCI frequencies
ASUS C.P.R.
ASUS MyLogo2
SFS (Stepless Frequency Selection) from 200MHz up to 240MHz at 1MHz increment
Back Panel I/O Ports
1 x Parallel
1 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA
1 x Audio I/O
1 x RJ45
4 x USB
Internal I/O Connectors
2 x USB connector supports additional 4 USB ports
24-pin ATX Power connector
4-pin ATX 12V Power connector
CD / AUX audio in
Chassis Intrusion
CPU / Chassis FAN connectors
Front panel audio connector
S/PDIF out connector
BIOS
4 Mb Flash ROM, AMI BIOS, (TCAV), PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS CrashFree BIOS 2
Manageability
WfM 2.0, DMI 2.0, WOR, WOL by PME, WOR by PME, WO USB, WO KB/MS
Support Disc
Drivers
ASUS PC Probe
Anti-Virus Software
ASUS LiveUpdate
Accessories
User's manual
UltraDMA cable
FDD cable
I/O shield
SATA cable
Form Factor
mATX, 9.6”x 9.6”(24.5cm x 24.5cm)
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
