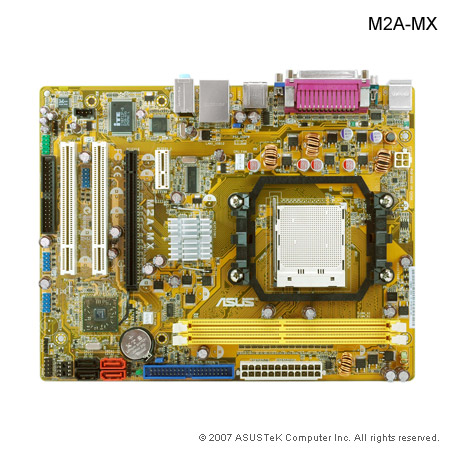

Asus M2A-MX, AMD 690V/FSB2000/2xDUAL DDR2-1066 AM2+, 800-AM2/1xPCI-Ex16/1x PCI-Ex1/2x PCI/1xATA/4xSATA2 RAID 0 1 0+1/VGA Radeon X1200/6-ch Sound/SPDIF/G-LAN/10xUSB 2.0/mATX



Preks apibūdinimas/Item:
 Asus M2A-MX, AMD 690V/FSB2000/2xDUAL DDR2-1066 AM2+, 800-AM2/1xPCI-Ex16/1x PCI-Ex1/2x PCI/1xATA/4xSATA2 RAID 0 1 0+1/VGA Radeon X1200/6-ch Sound/SPDIF/G-LAN/10xUSB 2.0/mATX
Gamintojas/Maker: ASUS
Modelis/Model: M2A-MX
Gamintojo Part/No: 021742
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_M2A-MX_021742.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - AMD AM2+ CPU Support Ready
- AMD 690V + SB600
- Dual-channel DDR2 1066/800/667/533
- PCI Express architecture
- Integrated Radeon X1200 VPU
- 10 x USB 2.0
- Gb LAN


CPU
AMD Socket AM2 Athlon64/Athlon64 FX/Athlon64 X2/Sempron Processors
Compatible with AMD AM2+ CPU
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipset
AMD 690V/SB600
System Bus
2000/1600
Memory
2 x240-pin DIMM, Max. 4 GB, DDR2 1066/800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*DDR2 1066 is supported by AM2+ CPU only
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA
Integrated Radeon X1200 VPU
High Definition Video Processing with max. resolutions to 2048 x 1536 @ 32 bpp
Storage
Southbridge
1 xUltraDMA 133/100/66
4 xSATA 3 Gb/s ports
Support RAID 0,1,0+1
LAN
Atheros PCIE Gigabit LAN
Audio
ALC662 6 -Channel CODEC
Support Jack-Detect and S/PDIF out interface
USB
10 USB 2.0 ports
Special Features
ASUS MyLogo
ASUS EZ Flash
ASUS CrashFree BIOS 2
ASUS C.P.R.(CPU Parameter Recall)
ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
6 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors supports additional 6 USB 2.0 ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 Power connector
1 x Speaker Connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
System Panel
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.5
ACPI v3.0
Green
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, PXE
Accessories
User's manual
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 SATA power cable
I/O Shield
Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS LiveUpdate Utility
AMD Cool 'n' Quiet Utility
Form Factor
uATX Form Factor
9.6 inch x 7.6 inch ( 24.5 cm x 19.4 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
