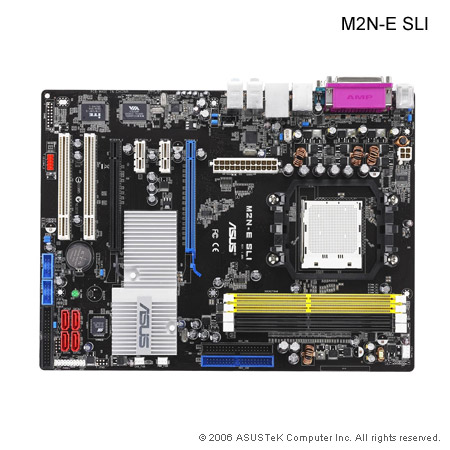

Asus M2N-E SLI, nForce500 SLI/FSB2000/2 xPCI-Ex16/2 xPCI-Ex1/2xPCI2.2/4xDUAL DDR2-800/2xATA/4xSATA2 RAID 0 1 0+1 5/8-ch sound/SPDIF/Gb-e LAN/ATX



Preks apibūdinimas/Item:
 Asus M2N-E SLI, nForce500 SLI/FSB2000/2 xPCI-Ex16/2 xPCI-Ex1/2xPCI2.2/4xDUAL DDR2-800/2xATA/4xSATA2 RAID 0 1 0+1 5/8-ch sound/SPDIF/Gb-e LAN/ATX
Gamintojas/Maker: ASUS
Modelis/Model: M2N-E-SLI
Gamintojo Part/No: 013426
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_M2N-E-SLI_013426.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - AMD Live!™ Ready
- Support AMD Socket AM2 CPU
- NVIDIA nForce 500 SLI Technology
- Dual channel DDR2 800
- IEEE 1394a
-
CPU
Support AMD® Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipset
NVIDIA nForce® 500 SLI™ MCP
Front Side Bus
2000 / 1600 MT/s
Memory
Dual channel memory architecture
4 x DIMM, max. 8GB, DDR2-800/667/533, ECC and non-ECC, un-buffered memory
Expansion Slots
2 x PCI Express x16 slot with NVIDIA® SLI™ technology support, at x8, x8 speed
2 x PCI Express x1
2 x PCI 2.2
Scalable Link Interface (SLI™)
Support two identical NVIDIA SLI-Ready graphics cards (both at x8 mode)
ASUS two-slot thermal design
Storage
NVIDIA nForce®500 SLI™ MCP supports:
- 2 x Ultra DMA 133 / 100 / 66 / 33
- 4 x Serial ATA 3.0Gb/s
- Supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives
LAN
NVIDIA nForce® 500 SLI™ MCP built-in Gigabit MAC with external Attansic PHY
Support TCP/IP Acceleration
Audio
C-Media Superior Quality Audio 7.1 channel CODEC (Vista ready)
Support S/PDIF out interface
IEEE 1394a
VIA 1394 controller supports 2 x 1394a ports
USB 2.0
Max. 8 x USB2.0 ports
Overclocking Features
AI Overclocking (intelligent CPU frequency tuner)
SFS (Stepless Frequency Selection): allowing FSB tuning from 200MHz up to 400MHz at 1MHz increment
ASUS C.P.R.(CPU Parameter Recall)
Adjustable FSB/DDR2 ratio. Fixed PCI/PCIe frequencies.
Special Features
ASUS EZ DIY:
- ASUS CrashFree BIOS3
- ASUS EZ Flash2
- ASUS Q-Connector
ASUS Q-Fan 2
ASUS MyLogo2
Back Panel I/O Ports
1 x PS/2 Keyboard port
1 x PS/2 Mouses
1 x LAN (RJ45) port
1 x IEEE 1394a port
4 x USB 2.0/1.1 ports
1 x SPDIF Out
1 x Parallel(Printer Port)
1 x COM port
8-channel Audio ports
Internal I/O Connectors
2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
1 x Floppy disk drive connector
2 x IDE connector for four devices
4 x SATA connectors
1 x CPU / 1 x Chassis / 1 x Power Fan connectors
1 x IEEE1394a connector
1 x S/PDIF output connector
Front Panel Audio connector
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector
System panel connector
BIOS
4Mb AWARD BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Manageability
WOL by PME, WOR by PME,Chassis Intruction, PXE
O/S Compatibility
Windows Vista/XP/2000
Accessories
1 x SLI bridge
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
2 x SATA cables
1 x SATA power cable for 2 device
1 x I/O Shield
1 x ASUS Q-Connector Kit(USB, System panel, Retail version only)
User's manual
Support Disc
Drivers
ASUS PC Probe II
ASUS Update
NVIDIA MediaShield™ RAID
Anti-virus software (OEM version)
Form Factor
ATX Form Factor, 12"x 8.6" (30.5cm x 21.8cm)
