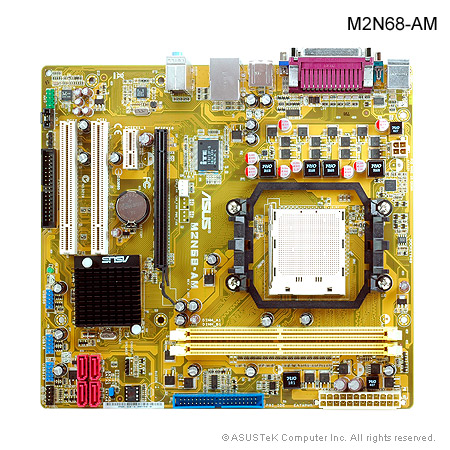

Asus M2N68-AM, NVIDIA GeForce 7025/nForce 630a/FSB2000/1x PCI-Ex16/1x PCI-Ex1/2xPCI 2.2/2xDimm DDR2-1066/VGA 256MB/1xATA/4xSATA2 RAID 0,1,0+1,5,JBOD/10xUSB/6-ch Sound/SPDIF/HDMI/microATX { M2N68-AM }



Preks apibūdinimas/Item:
 Asus M2N68-AM, NVIDIA GeForce 7025/nForce 630a/FSB2000/1x PCI-Ex16/1x PCI-Ex1/2xPCI 2.2/2xDimm DDR2-1066/VGA 256MB/1xATA/4xSATA2 RAID 0,1,0+1,5,JBOD/10xUSB/6-ch Sound/SPDIF/HDMI/microATX { M2N68-AM }
Gamintojas/Maker: ASUS
Modelis/Model: M2N68-AM
Gamintojo Part/No: 030682
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_M2N68-AM_030682.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  • AMD® AM2+ Quad-Core CPU/AM2 CPU Support
  • HyperTransport 1.0
  • 4 x SATA 3Gb/s RAID 0,RAID 1, RAID10,RAID 5 and JBOD
  • PCI Express x16 architecture
  • Dual-Channel DDR2 -1066/800/667
  • Gb LAN


CPU
AMD Socket AM2+ / AM2 Processors
for AMD Phenom™ FX / Phenom / Athlon™ / Sempron™
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
Chipset
NVIDIA Geforce 7025/nForce 630a
System Bus
2000/1600 MT/s
Memory
2 x240-pin DIMM, Max. 4 GB, DDR2 1066/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*DDR2 1066 is supported by AM2+ CPU only
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage
Southbridge
4 xSATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD

ATAPI support ,AHCI mode
LAN
RTL8211CL Phy Gigabit LAN
Audio
ALC662 High Definition Audio 6 -Channel CODEC
USB
10 USB 2.0 ports (4 on back I/O, 6 on board)
Special Features
ASUS MyLogo2
ASUS CrashFreeBIOS3
ASUS EZ Flash2
ASUS Q-Fan
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA
1 x COM
1 x Parallel port
1 x LAN (RJ45) port
4 x USB 2.0
6 Channel Audio I/O
Internal I/O Connectors
3 x USB 2.0 connector supports additional 6 USB 2.0 ports
1 x High Definition Front panel audio connector
1 x CD audio-in connector
1 x S/PDIF output connector
1 x Floppy disk drive connector
1 x IDE connector
1 x LPT connector
1X CPU Fan connectors
1X24-pin EATX power connector
1X4-pin ATX 12V Power connector
1 x System Panel connector
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.5
Manageability
WfM 2.0, DMI 2.0, WOR by Ring, PME Wake Up,WO_USB,WO_KB/MS,PXE
O/S Compatibility
Windows Vista
Windows XP
Accessories
User's manual
1 x SATA cable
1 x SATA power cable
1 x UltraDMA 133/100 cable
1 x I/O Shield
Support Disc
Drivers
ASUS PC Probe II
ASUS LiveUpdate Utility
Anti -virus software(OEM version)
Form Factor
uATX Form Factor
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
