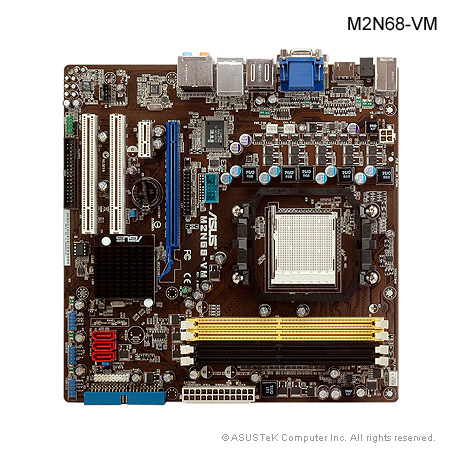

Asus M2N68-VM, NVIDIA GeForce 7050PV/FSB2000/1x PCI-Ex16/1x PCI-Ex1/2xPCI 2.2/4xDimm DDR2-1066/VGA 256MB/1xATA/3xSATA2 RAID 0,1,5,10,JBOD/1x eSATA/8-ch Sound/SPDIF/HDMI/microATX { M2N68-VM }



Preks apibūdinimas/Item:
Asus M2N68-VM, NVIDIA GeForce 7050PV/FSB2000/1x PCI-Ex16/1x PCI-Ex1/2xPCI 2.2/4xDimm DDR2-1066/VGA 256MB/1xATA/3xSATA2 RAID 0,1,5,10,JBOD/1x eSATA/8-ch Sound/SPDIF/HDMI/microATX { M2N68-VM }
Gamintojas/Maker: ASUS
Modelis/Model: M2N68-VM
Gamintojo Part/No: 030681
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_M2N68-VM_030681.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  • AMD® AM2/AM2+ CPU Support up to 140W
  • Dual-Channel DDR2 -1066/800/667
  • 5000 hrs VRM solid capacitor
  • Supports HDMI Technology
  • Supports Playback of HD DVD and Blu-ray Discs with HDCP compliant
  • Support Dual-VGA output:DVI & RGB
  • Instant Internet Access with Express Gate™


CPU
AMD Socket AM2+ / AM2 Processors
Athlon64 / Athlon64 FX / Athlon64 X2 / Sempron / Phenom FX / Phenom
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
Chipset
NVIDIA GeForce 7050PV/nForce 630a
System Bus
2000/1600 MT/s
Memory
4 x240-pin DIMM, Max. 8 GB, DDR2 1066/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA
Integrated Nvidia® Geforce®7Series Shader model3.0 DirectX 9 graphics processor
Maximum shared memory of 256 MB
Supports RGB with max. resolution 1920 x1440 (@70Mhz*32bpp/75Mhz*16bpp)
Supports DVI-D with max. resolution 1920 x1200 (@60Mhz)
Supports HDMI™ Technology with HDCP compliant with max. resolution 1920 x 1080p*
*Due to the chipset limitation, only MPEG 2 & WMV Offload can support HD format 1920 x 1080p.
*When playing HD DVD and Blu-ray disc the suggested system configuration above: DDR2 800 1GB*2 /Althon 64 X2 4400+/Graphic shared memory 256MB/Purevideo HD support.
Dual VGA output support: RGB & DVI / RGB & HDMI
* Due to the chipset limitation, simultaneous output for DVI and HDMI is not supported.
Storage
Southbridge
1 xUltraDMA 133/100
3 xSATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD
x 1 x External Serial ATA 3.0 Gb/s (SATA On-the-Go)
ATAPI support ,AHCI mode
LAN
PHY Gigabit LAN
Audio
VT1708B High Definition Audio 8 -Channel CODEC
Supports Anti Pop Funtion and Vista Basic
Supports S/PDIF out interface, Jack-detect and multi-streaming
USB
12 USB 2.0 ports (6 on back I/O, 6 on board)
ASUS Unique Features
ASUS Express Gate:
1. Access the Internet in 5-second* boot time without entering Windows
2. A built-in OS offers instant fun platform for Internet and Instant Messenger!
3. Friendly Picture Manager Interface
* The actual boot time is subject to hardware configurations and product models.
ASUS Quiet Thermal Solution:
- ASUS Q-Fan
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Other: ASUS MyLogo 2
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 300MHz at 1MHz increment
Adjustable CPU Voltage at 0.05V increment
ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x HDMI
1 x DVI
1 x VGA
1 x RJ45
1 x S/PDIF Output
1 x External SATA
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB 2.0 connector supports additional 6 USB 2.0 ports
High Definition Front panel audio connector
1 x CD audio-in connector
1 x S/PDIF output connector
1 x Floppy disk drive connector
1 x IDE connector for two devices
1 x LPT connector
1 x COM
CPU / Chassis/PWR Fan connectors
Chassis Intrusion connector
24-pin EATX power connector
4-pin ATX 12V Power connector
1 x System Panel connector
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4
Manageability
WfM 2.0, DMI 2.0, WOR by Ring, PME Wake Up,WO_USB,WO_KB/MS
O/S Compatibility
Windows Vista
Windows XP
Accessories
User's manual
1 x Serial ATA cable
1 x SATA power cable
1 x UltraDMA 133/100 cable
1 x I/O Shield
* Note: The floppy disk drive cable is purchased separately
Support Disc
Drivers
ASUS PC Probe II
ASUS LiveUpdate Utility
Anti-virus software(OEM version)
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
