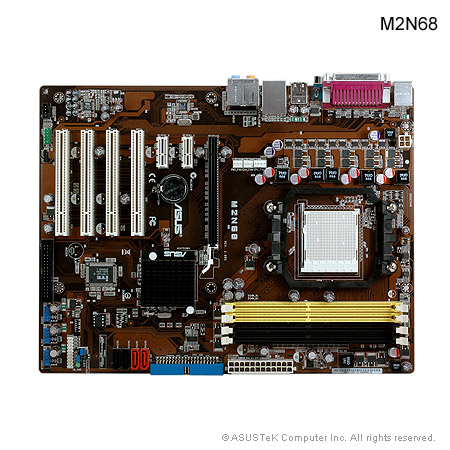

Asus M2N68, Internet Cafe design nForce430 MCP/FSB2000/1x PCI-Ex16/2x PCI-Ex1/3xPCI 2.2/4xDimm DDR2-800/1xATA/4xSATA2/6-ch Sound/SPDIF/ATX { M2N68 }



Preks apibūdinimas/Item:
 Asus M2N68, Internet Cafe design nForce430 MCP/FSB2000/1x PCI-Ex16/2x PCI-Ex1/3xPCI 2.2/4xDimm DDR2-800/1xATA/4xSATA2/6-ch Sound/SPDIF/ATX { M2N68 }
Gamintojas/Maker: ASUS
Modelis/Model: M2N68
Gamintojo Part/No: 030679
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_M2N68_030679.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  • AMD® AM2+ Quad-Core CPU/AM2 CPU Support
  • AMD 140W CPU Support
  • NVIDIA nForce 630a Chipset
  • Max. 8GB Dual channel DDR2 1066
  • PCI Express x16 architecture
  • 4 x SATA 300MB/s RAID 0,RAID 1, RAID0+1,RAID 5 and JBOD
  • Optical S/PDIF out port at back I/O


CPU
AMD Socket AM2+ / AM2 Processors
for AMD Phenom™ FX / Phenom / Athlon™ / Sempron™
AMD Cool'n'Quiet™ Technology
Chipset
NVIDIA nForce 630a
System Bus
2000/1600 MT/s
Memory
4 x240-pin DIMM, Max. 8 GB, DDR2 1066/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only. Please refer to www.asus.com or user manual for Memory QVL.
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
2 x PCIe x1
4 x PCI 2.2
Storage
Southbridge
1 xUltraDMA 133/100/66/33
4 xSATA 3 Gb/s ports
NVIDIA® MediaShield™ RAID Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives
LAN
NVIDIA nForce built-in Gigabit MAC with external Realtek 8211CL PHY
Audio
8 -Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Support Jack Detection and Multi-streaming
USB
10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS Express Gate:
1. Access the Internet in 5-second* boot time without entering Windows
2. A built-in OS offers instant fun platform for Internet and Instant Messenger!
3. Friendly Picture Manager Interface
* The actual boot time is subject to hardware configurations and product models.
ASUS Quiet Thermal Solution:
- ASUS Q-Fan
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Special Features
ASUS AI NET 2
ASUS MyLogo 2
Back Panel I/O Ports
1 x PS/2 Keyboard port(purple)
1 x PS/2 Mouse (green)
1 x LAN (RJ45) port
4 x USB 2.0/1.1 ports
1 x Parallel(Printer) Port
1 x Optical SPDIF out
1 x COM Port
8-channel Audio ports
Internal I/O Connectors
3 x USB 2.0 connectors support additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x Chassis Intrusion connector
1 x CD audio in
1 x 24-pin ATX Power connector
1 x System panel connector
1 x S/PDIF Out connector
1 x Front panel audio connector
4-pin ATX 12V Power connector
BIOS
8 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS2.5
Accessories
1 x UltraDMA 133/100/66 cable
1 x SATA cable
1 x SATA power cable
1 x I/O Shield
User's manual
*Note: The floppy disk drive cable is purchased separately.
Support Disc
Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)
Form Factor
ATX Form Factor
12 inch x 9.25 inch ( 30.5 cm x 23.6 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
