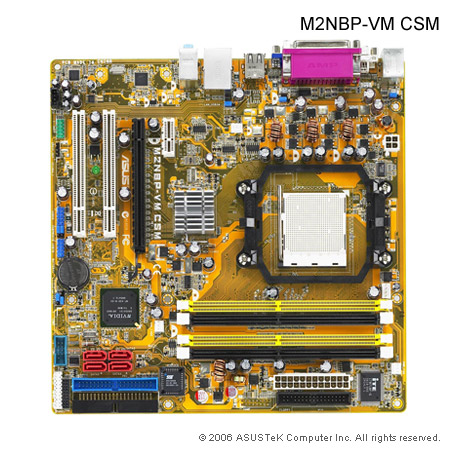

Asus M2NBP-VM CSM NVIDIA Quadro NVS 210S/FSB2000/PCI-Ex16/PCI-Ex1/2 xPCI/4 xDUAL DDR2-800/VGA GeF6 128MB/DUAL DVI-D+RGB/2 xATA/4 xSATA2 RAID 0 1/6-ch Sound/SPDIF/8 xUSB2/G-LAN nF430B/mATX



Preks apibūdinimas/Item:
 Asus M2NBP-VM CSM NVIDIA Quadro NVS 210S/FSB2000/PCI-Ex16/PCI-Ex1/2 xPCI/4 xDUAL DDR2-800/VGA GeF6 128MB/DUAL DVI-D+RGB/2 xATA/4 xSATA2 RAID 0 1/6-ch Sound/SPDIF/8 xUSB2/G-LAN nF430B/mATX
Gamintojas/Maker: ASUS
Modelis/Model: M2NBP-VM-CSM
Gamintojo Part/No: 013541
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_M2NBP-VM-CSM_013541.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - Support AMD® Socket AM2
- AMD Live!™ Ready
- NVIDIA Quadro® NVS 210S+NVIDIA nForce®
  430B
- Dual-channel DDR2 800/667/533 support ECC
   and non-ECC,un-buffered memory
- PCI Express architecture
- Dual VGA Ouput: DVI-D & RGB
- Integrated GeForce6 GPU



CPU
AMD Socket AM2 Athlon64/Athlon64 FX/Athlon64 X2/Sempron/ Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipset
NVIDIA Quadro NVS 210S + NVIDIA nForce 430B

System Bus
2000/1600 MT/s
Memory
4 x DIMM, Max. 8 GB, DDR2 800/667/533/ ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
VGA
Integrated GeForce 6 GPU
Dual VGA output support: DVI-D/RGB
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage
Southbridge
2 xUltraDMA 133/100/66/33
4 xSATA 3 Gb/s ports Support RAID 0,1,
LAN
NVIDIA nForce® 430B built-in Gigabit/ MAC with external Marvell PHY
Audio
ADI AD1986A High Difinition Audio 5 -Channel CODEC
S/PDIF out on back I/O port
USB
8 USB 2.0 ports /1.1 ports
Manageability
WfM 2.0,DMI 2.0,WOL by PME,Chasis Intrusion,PXE,
Overclocking Features
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 400MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS MyLogo
ASUS EZ Flash 3
ASUS CrashFree BIOS 2
ASUS Q-Fan 2
Back Panel I/O Ports
1 x DVI-D out
1 x D-Sub out
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
5 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors supports additional 4 USB 2.0 ports
2 x IDE connector
1 x TPM connector
4 x SATA connectors
1 x CPU Fan connector
2 x Chassis Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 -pin ATX Power connector
Front panel audio connector
COM connector
Chassis Intrusion connector
CD/AUX audio in
System Panel Connector
Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS LiveUpdate Utility
Accessories
User's manual
x UltraDMA 133/100/66 cables
x Floppy disk drive cables
x SATA cables
SATA power cables
I/O Shield
Form Factor
uATX Form Factor
9.6inchx9.6inch ( 24.5cm x24.5cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
