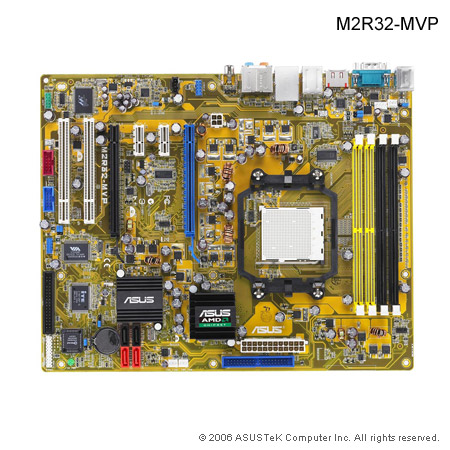

Asus M2R32-MVP, AM2+, AMD 580X/FSB2000/4xDUAL DDR2-800/2xPCI-E x16 CF/2x PCI-Ex1/2xPCI/1xATA/4xSATA2 RAID/e-SATA/8-ch Sound/RAID 0 1 0+1/2x1394a/G-LAN/10xUSB/ATX



Preks apibūdinimas/Item:
 Asus M2R32-MVP, AM2+, AMD 580X/FSB2000/4xDUAL DDR2-800/2xPCI-E x16 CF/2x PCI-Ex1/2xPCI/1xATA/4xSATA2 RAID/e-SATA/8-ch Sound/RAID 0 1 0+1/2x1394a/G-LAN/10xUSB/ATX
Gamintojas/Maker: ASUS
Modelis/Model: M2R32-MVP
Gamintojo Part/No: 012336
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_M2R32-MVP_012336.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - Support AMD Socket AM2+/AM2 CPU
- AMD 580X CrossFire Chipset+ATI™ SB600
- Dual PCIe x 16 Graphics
- Dual-channel DDR2 800/667/533
- AMD Live!™ Ready
- Stack Cool 2
- Noise-Filtering


CPU
AMD Socket AM2+ / AM2 Processors
Support AMD® Socket AM2+/ AM2 Phenom FX(2000MT/s)/Phenom(2000MT/s)/ Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron
AMD Cool 'n' Quiet™ Technology
AMD HyperTransport Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipset
AMD 580X CrossFire Chipset/SB600
System Bus
2000/1600
Memory
4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Expansion Slots
2 x PCIe x16 slot with CrossFire support at full x16, x16 mode
2 x PCIe x1
2 x PCI
CrossFire
Support ATI CrossFire graphics cards (both at x16 mode)
Storage
Southbridge
1 xUltraDMA 133/100/66/33
4 xSATA 3 Gb/s ports Support RAID 0,1,0+1
JMicron 360 SATA controller
1 xExternal SATA hard disk (SATA On-the-Go)
Audio
ADI 1988A 8 -Channel CODEC
Coaxial / Optical S/PDIF out ports
ASUS Noise Filter
Universal Audio Jack
Multi-Streaming
LAN
Marvell 88E8001 Gigabit LAN Controller, featuring AI NET2
IEEE 1394a
VIA VT6308P controller, 1 at midboard, 1 at back panel
USB
10 USB 2.0 ports
Special Features
ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
SATA On the Go (External SATA on back I/O port)
Q-Connector
ASUS Q-Fan 2
Stack Cool 2
Overclocking Features
Intelligent overclocking tools
- ASUS AI NOS (Non-delay Overclocking System)
- AI Clock Skew
- ASUS O.C. Profile: overclocking configuration-sharing tool
Precision Tweaker
- vDIMM: 12 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.025V increment
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 400MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x External SATA
1 x S/PDIF Out
1 x IEEE 1394a
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors supports additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
System Panel
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,Chasis Intrusion,PXE,RPL
Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
Accessories
User's manual
USB2.0 module
x UltraDMA 133/100/66 cable
x Floppy disk drive cable
x SATA cable
SATA power cable
I/O Shield
3 in 1 Q-connector (USB, 1394, system panel)
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
