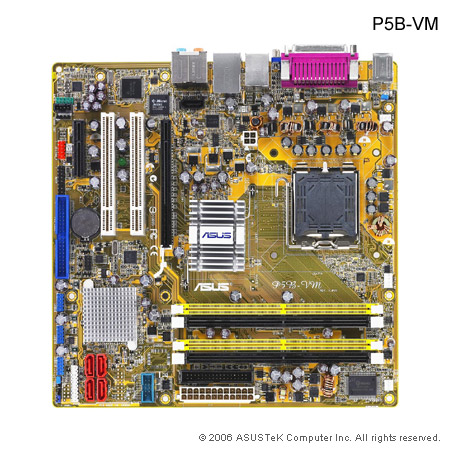

ASUS P5B-VM DO, iQ965/ICH8DO/1066FSB/4x DUAL DDR2-800/1x PCI-Ex16/PCI-Ex4/2x PCI 2.2/2x ATA/7x SATA2 RAID 0 1 5 10/eSATA2/VGA intel GMA X3000-256MB/8ch audio/G-LAN 82566DM/10xUSB/2xIEEE1394a/SPDIF/mAT



Preks apibūdinimas/Item:
 ASUS P5B-VM DO, iQ965/ICH8DO/1066FSB/4x DUAL DDR2-800/1x PCI-Ex16/PCI-Ex4/2x PCI 2.2/2x ATA/7x SATA2 RAID 0 1 5 10/eSATA2/VGA intel GMA X3000-256MB/8ch audio/G-LAN 82566DM/10xUSB/2xIEEE1394a/SPDIF/mAT
Gamintojas/Maker: ASUS
Modelis/Model: P5B-VM
Gamintojo Part/No: 014175
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_P5B-VM_014175.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - Intel LGA775 Platform
- Intel® Quad-core CPU Ready
- Intel® Core™2 Extreme / Core™2 Duo Ready
- Intel® Pentium® D / Pentium® 4 / Celeron® D Ready
- Intel® G965 / ICH8
- Intel® GMA X3000, Intel® Clear Video Technology
- Dual-channel DDR2 800/667/533
- ESATA and IEEE 1394 Support
- AI Gear / AI Nap / ASUS Advanced Q-Fan


CPU
Intel Socket 775 Core™2 Extreme/Core™2 Duo/Pentium® D/Pentium® 4/Celeron D Processors
Compatible with Intel® 05B/05A/06 processors
Intel® Hyper-Threading Technology ready
* Refer to www.asus.com for Intel CPU support list
* Please update the latest BIOS to support Intel Quad-core CPU
Chipset
Intel G965
Intel ICH8

Front Side Bus
1066/800/533 MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x4
2 x PCI 2.2
VGA
Integrated Intel® Graphics Media Accelerator X3000 (Intel® GMA X3000)
Supports RGB with max. resolution 2048 x 1536 @75Hz
High Definition Video Processing with max. resolutions to 2048 x 1536 bpp(@ 75Hz)
Max. shared memory of 256MB
Support Microsoft® DX 9, OpenGL 1.5, Pixel Shader 3.0
Storage
Southbridge
4 xSATA 3 Gb/s ports
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66/33 for up to 2 PATA devices
1 xInternal SATA 3.0 Gb/s port
1 xExternal SATA 3.0 Gb/s port (SATA On-the-Go)
Support RAID 0,1,JBOD
LAN
Realtek® PCI-E Gigabit LAN controller
Audio
ADI® AD1988 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
ASUS Noise Filter
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
IEEE 1394
TI® 1394a controller supports 2 x 1394a ports (one at midboard; one at back panel)
USB
10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS Quiet Thermal Solution
- ASUS AI Gear
- ASUS AI Nap
- ASUS Advanced Q-Fan
ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Connector
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Special Features
ASUS MyLogo 2
ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x External SATA
1 x IEEE 1394a
1 x LAN(RJ45) port
4 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
5 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x Azalia Digital Header
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE,RPL
Accessories
User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 x SATA power cable
3 in 1 Q-connector
Support Disc
Drivers
ASUS PC Probe ||
Anti-virus software (OEM version)
ASUS Update
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.5 cm x 24.5 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
