Asus P5B-V, Core 2 Extreme iG965/1066FSB/4XDUAL DDR2-800/2x PCI-Ex16/2x PCI-Ex1/3x PCI/1xATA/4xSATA2/1xSATA2+eSATA2-RAID 0 1 JBOD/VGA intel GMA X3000-256MB/8ch audio/G-LAN/1x IEEE1394a/ATX



Preks apibūdinimas/Item:
 Asus P5B-V, Core 2 Extreme iG965/1066FSB/4XDUAL DDR2-800/2x PCI-Ex16/2x PCI-Ex1/3x PCI/1xATA/4xSATA2/1xSATA2+eSATA2-RAID 0 1 JBOD/VGA intel GMA X3000-256MB/8ch audio/G-LAN/1x IEEE1394a/ATX
Gamintojas/Maker: ASUS

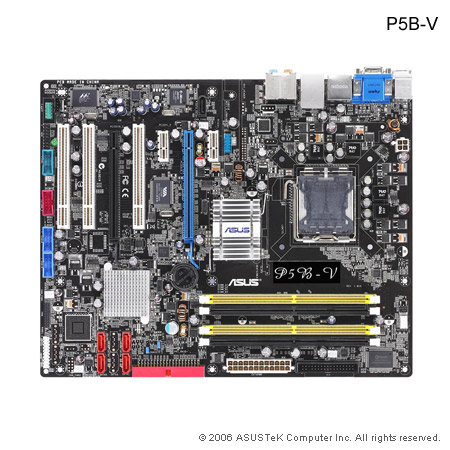

Modelis/Model: P5B-V
Gamintojo Part/No: 012997
Nuoroda/URL link: http://www.asus.com/products.aspx
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_P5B-V_012997.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng): - Intel LGA775 Platform
- Intel® Quad-core CPU Ready
- Intel® Core™2 Extreme/ Core™2 Duo Ready
- FSB 1066/800/533
- Dual-channel DDR2 800/667/533
- Intel® GMA X3000 GPU integrated
- Fanless Design - Stack Cool 2
- 1394/ SATA on the Go
- Gb LAN/ 8-ch HD Audio
- AI NOS/ AI Gear/ AI Nap


CPU
Intel Socket 775 Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron D Processors
Intel® Quad-core CPU Ready
Compatible with Intel® 05B/05A/06B processors
Intel® Hyper-Threading Technology ready
* Refer to www.asus.com for Intel CPU support list
** Please update the latest BIOS to support Intel Quad-core CPU
Chipset
Intel P965
Intel ICH8

Front Side Bus
1066/800/533 MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
VGA
Integrated Intel® Graphics Media Accelerator X3000
High-definition video processing with a maximum resolution of 2048 x 1536 bpp @ 75 Hz
Maximum shared memory of 256 MB
Supports Microsoft® DirectX® 9, OpenGL® 1.5, Pixel Shader 3.0
Expansion Slots
2 x PCIe x16 (one @ x16 mode, the other @ x2 or x4 mode)
2 x PCIe x1
3 x PCI
Storage
Southbridge
4 xSATA 3 Gb/s ports
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xInternal SATA 3 Gb/s port
1 xSATA 3 Gb/s port (SATA On-the-Go)
Support RAID 0,1,JBOD
(by 1x External SATA & 1x Internal SATA)
LAN
Marvell 88E8001 Gigabit LAN Controller featuring AI Net 2
Audio
ADI® AD1988A 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
ASUS Noise Filter
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
IEEE 1394
Supports 2 x 1394a ports (one at midboard; one at back panel)
USB
10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS Quiet Thermal Solution
- ASUS AI Gear
- ASUS AI Nap
- ASUS Fanless Design: Stack Cool 2
- ASUS Advanced Q-Fan
ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Special Features
Multi-language BIOS
ASUS Music Alarm
Overclocking Features
Intelligent overclocking tools
- ASUS PEG Link
- AI Overclocking (intelligent CPU frequency tuner)
- ASUS AI Booster Utility
- ASUS AI NOS (Non-delay Overclocking System)
SFS (Stepless Frequency Selection)
- FSB tuning from 100MHz up to 500MHz at 1MHz increment
- Memory tuning from 533MHz up to 1066MHz
- PCI Express frequency tuning from 90MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x External SATA
1 x S/PDIF Out
1 x IEEE 1394a
1 x LAN(RJ45) port
4 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
5 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
3 x Chassis Fan connector
1 x Power Fan connector
1 x Azalia Digital Header
1 x S/PDIF Out connector
2 x4-pin ATX 12V Power connector
24 -pin ATX Power connector
COM connector
Chassis Intrusion connector
CD/AUX audio in
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
WfM 2.0
ACPI 2.0a
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories
UltraDMA 133/100/66 cable
FDD cable
USB2.0 port module
SATA cables
SATA power cables
I/O Shield
User's manual
3 in 1 Q-connector
Support Disc
Drivers
ASUS PC Probe ||
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
ASUS Music Alarm
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
