MATRIX UAB - prekės aprašymas/item description

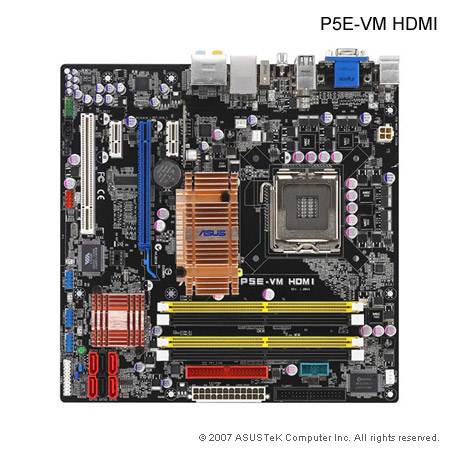

Asus P5E-VM HDMI , iG35/FSB 1333MHz/4xDual DDR2-800 max 8GB/1xPCI-E x16/2xPCI-E x1/1xPCI/1xPATA/6xSATA2 RAID 0,1,5,10/8-ch Sound/PCie Gb-LAN/1394/Dual VGA Media Accelerator X3500/ HDMI/DVI-D/12xUSB2.0/mATX { P5E-VM HDMI }

Preks apibūdinimas/Item:

Gamintojas/Maker:

ASUS

Modelis/Model:

P5E-VM-HDMI

Gamintojo Part/No:

023909

Nuoroda/URL link:

http://www.asus.com/

Nuoroda Matrix Uab:

http://www.deze.lt/products/ASUS_P5E-VM-HDMI_023909 .htm

Aprašymas PDF:

http://www.deze.lt/products/

Naudojimosi instrukcija:

Svoris/Weight:

Išmatavimai/Dimensions:

Komplektacija/pakuotė:

Garantija/Warranty:

Aprašymas (ltu):

Description (eng):

CPU	LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors Compatible with Intel® 05B/05A/06 processors Support Intel® next generation 45nm Multi-Core CPU *This motherboard supports FSB 1333/1066/800
Chipset	Intel® G35 / ICH9R with Intel® Fast Memory Access Technology
Front Side Bus	1333 / 1066 / 800 MHz
Memory	4 x DIMM, max. 8GB, DDR2 800 / 667 MHz, non-ECC, un-buffered memory Dual channel memory architecture
Expansion Slots	1 x PCI-E x16 2 x PCI-E x1 1 x PCI
VGA	Intel® Graphics Media Accelerator X3500 integrated Dual VGA output support: HDMI/DVI-D and RGB Supports RGB with max. resolution 2048 x 1536@75Hz Supports HDMI with max. resolution 1920 x 1200@60Hz Supports DVI with max. resolution 1920 x 1200@60Hz Maximum shared memory of 384 MB Supports Microsoft® DirectX® 10, OpenGL® 2.0, Pixel Shader 4.0 *The DirectX® 10 driver will be provided by the chipset vendor later.
Storage	Southbridge ICH9R: - 6 x SATA 3.0 Gb/s ports - Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10 JMicron® JMB368 PATA and SATA controller - 1 x UltraDMA 133/100/66 for up to 2 PATA devices
LAN	Atheros L1 PCI-E Gigabit LAN controllers PCIe Gb LAN controller
Audio	Realtek ALC 883, 8-channel High-Definition Audio CODEC - Support Jack-dectecting, Enumeration, Multi-streaming - Coaxial S/PDIF out ports at back I/O - ASUS Noise Filter
IEEE 1394	VIA VT6308P controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)
USB	12 x USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS Unique Features	ASUS AI Lifestyle Features: - ASUS Splendid ASUS Quiet Thermal Solution: - ASUS AI Gear 2 - ASUS AI Nap - ASUS Fanless Design - ASUS Q-Fan 2 ASUS Crystal Sound: - ASUS Noise Filter ASUS EZ DIY: - ASUS Q-Connector - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2
Special Features	ASUS MyLogo 3
Overclocking Features	Precision Tweaker 2: - vDRAM: 33-step DRAM voltage control - vChipset (N.B.): 24-step chipset voltage control - vFSB: 16-step FSB voltage control - vCPU PLL: 16-step CPU PLL voltage control SFS (Stepless Frequency Selection) - vCore: Adjustable CPU voltage at 0.0125V increment - FSB tuning from 200MHz up to 800MHz at 1MHz increment - Memory tuning from 533MHz up to 1333MHz - PCI Express frequency tuning from 100MHz up to150MHz at 1MHz increment Overclocking Protection: - ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports	1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x S/PDIF Out (Coaxial) 1 x D-sub Port 1 x HDMI/DVI port 1 x IEEE1394a 1 x RJ45 port 6x USB 2.0/1.1 8-channel Audio I/O
Internal I/O Connectors	3 x USB connectors support additional 6 USB ports 1 x Floppy disk drive connector 1 x IDE connector 1 x COM connector 6 x SATA connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x Power Fan connector 1 x IEEE1394a connector Front panel audio connector 1 x S/PDIF Out Header Chassis Intrusion connector CD audio in 24-pin ATX Power connector 1 x 4-pin ATX 12V Power connector System Panel(Q-Connector)
BIOS	8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories	UltraDMA 133/100/66 cable FDD cable 3 x Serial ATA cables 3 x Serial ATA power cable 1 x HDMI-to-DVI conversion adapter I/O Shield User's manual 3 in 1 Q-connector
Support Disc	Drivers ASUS PC Probe II ASUS Update Anti-virus software (OEM version) Multi-language MB installation guide uATX Form Factor, 9.6”x 9.6” (24.4cm x 24.4cm)

Opisanije (ru):

Informacje o produkcie (pol):

Galimi priedai (optional accesories, supplies):

Aptarti forume:

Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
