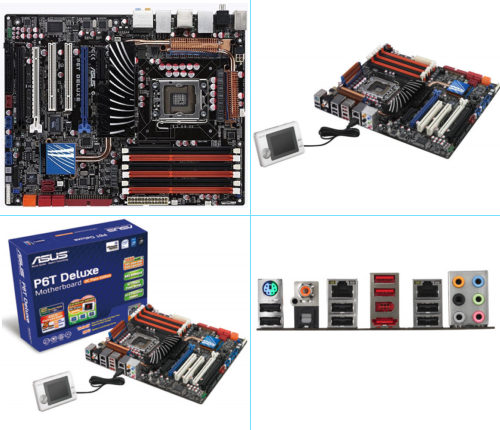

ASUS P6T DELUXE {OC Palm Edition}x58/1xPCI-Ex4/3xPCI-Ex16/2xPCI/6xDDRIII 1600(O.C.)/1333/ 6xSATAII/ eSata x1 / ATA / 8-ch audio/8+6 USB2.0/GbE-LAN/ATX { P6T DELUXE }

Prekės apibūdinimas/Item:

ASUS P6T DELUXE {OC Palm Edition}x58/1xPCI-Ex4/3xPCI-Ex16/2xPCI/6xDDRIII 1600(O.C.)/1333/ 6xSATAII/ eSata x1 / ATA / 8-ch audio/8+6 USB2.0/GbE-LAN/ATX { P6T DELUXE }

Gamintojas/Maker:

ASUS

Modelis/Model:

P6T-DELUXE-x58

Gamintojo Part/No:

032514

Nuoroda/URL link:

http://www.asus.com/products.aspx

Nuoroda Matrix Uab:

http://www.deze.lt/products/ASUS_P6T-DELUXE-x58_032514.htm

Aprašymas PDF:

http://www.deze.lt/products/

Naudojimosi instrukcija:

Svoris/Weight:

 2.76 kg

Išmatavimai/Dimensions:

30.5 cm x 24.4 cm

Komplektacija/pakuotė:

1 x 2-lizdų USB 2.0, 1-lizdo IEEE 1394 modulis
6 x Serial ATA  laidai
2 x SAS laidai
1 x UltraDMA-133 laidas
1 x OC Palm kit (device + USB laidas)
1 x ASUS Q-Shield
1 x Optional fan for water cooling / passive cooling only
1 x ASUS Q-Connector Kit
1 x ASUS SLI bridge jungiklis

Garantija/Warranty:

Aprašymas (ltu):

Modelis	• ASUS P6T Deluxe (OC Palm Edition)
Procesoriaus lizdo tipas	• Intel Socket B (LGA1366)
Lustų rinkinys	• Intel X58 Express • Intel ICH10R
Procesoriaus tipas	• Intel Core i7 Extreme • Intel Core i7
Magistralės sparta	• Intel QuickPath Interconnect • Iki 6.4 GT/s
Atminties palaikymas	• 6 DDR3 240-pin DIMM lizdai • Triple-channel palaikymas • Maksimali atmintis 24 GB
Atminties tipas	• DDR3-2000 (OC) • DDR3-1866 (OC) • DDR3-1800 (OC) • DDR3-1600 (OC) • DDR3-1333 • DDR3-1066
PCI/PCI-E lizdai	• 3 x PCI Express 2.0 x16 slots (x16/x16/x1 mode or x16/x8/x8 mode) • 1 x PCI Express x4 lizdas • 2 x PCI lizdai
Multi-GPU palaikymas	• Palaiko NVIDIA SLI technologiją • Palaiko ATI CrossFireX technologiją
Standžiojo disko palaikymas	• 6 x SATA 3.0 Gb/s lizdai • Intel Matrix Storage supporting SATA RAID 0, 1, 5 and 10 Marvell 88SE6320 kontroleris • 2 x SAS lizdai palaikantys SAS RAID 0 and 1 Marvell 88SE6111 kontroleris • 1 x Ultra DMA-133/100/66 lizdas • 1 x External SATA 3.0 Gb/s lizdas
Tinklo jungtis	• Dual Marvell 88E8056 PCI Express Gigabit LAN controllers
USB	• 14 USB 2.0 ports (8 rear ports, 3 motherboard headers)
IEEE 1394 (FireWire)	• VIA VT6308 kontroleris • 2 x IEEE 1394a lizdai
Garso plokštė	• ADI AD2000B 8-channel high-definition audio (HDA) codec • Coaxial / optical S/PDIF-out ports • DTS Surround Sensation UltraPC • ASUS Noise Filter
Galinės panelės I/O lizdai	• 1 x PS/2 klaviatūros / pelės lizdas • 1 x S/PDIF Out (coaxial + optical) • 1 x External SATA • 1 x IEEE1394a • 2 x RJ45 LAN lizdai • 8 x USB 2.0 lizdas • 8-channel audio I/O
Vidinės I/O jungtys	• 1 x ATX 24-pin power jungiklis • 1 x EATX 8-pin 12V power jungiklis • 1 x 4-pin CPU fan jungiklis • 3 x 3-pin chassis fan jungikliai • 1 x 3-pin power fan jungikliai • 1 x Floppy drive jungiklis • 1 x Front panel audio jungiklis • 1 x CD audio in header • 3 x USB 2.0 jungikliai (skirti 6 USB lizdams) • 3 x Onboard On/Off/CMOS reset buttons • 6 x Serial ATA II jungikliai • 1 x Front panel jungiklis • 1 x Onboard power LED • 1 x ATA-133 IDE jungiklis • 1 x IEEE1394a header • 1 x S/PDIF out header • 1 x Chassis intrusion jungiklis • 1 x TPM jungiklis • 1 x Power On jungiklis • 1 x Reset jungiklis
BIOS	• 16 MB Flash EEPROM • LAN Boot ROM • PnP, DMI 2.0, WfM 2.0, SM BIOS 2.4 support

Description (eng):

Model	• ASUS P6T Deluxe (OC Palm Edition)
CPU Socket	• Intel Socket B (LGA1366)
Chipset	• Intel X58 Express • Intel ICH10R
Supported Processors	• Intel Core i7 Extreme • Intel Core i7
System Bus	• Intel QuickPath Interconnect • Up to 6.4 GT/s
Memory Type Support	• Six DDR3 240-pin DIMM slots • Triple-channel support • Maximum 12 GB
Memory Speeds	• DDR3-2000 (OC) • DDR3-1866 (OC) • DDR3-1800 (OC) • DDR3-1600 (OC) • DDR3-1333 • DDR3-1066
Expansion Slots	• 3 x PCI Express 2.0 x16 slots (x16/x16/x1 mode or x16/x8/x8 mode) • 1 x PCI Express x4 slot • 2 x PCI slots
Multi-GPU Support	• Supports NVIDIA SLI Technology • Supports ATI CrossFireX Technology
Storage Connectivity Options	Intel ICH10R South Bridge • 6 x SATA 3.0 Gb/s ports • Intel Matrix Storage supporting SATA RAID 0, 1, 5 and 10 Marvell 88SE6320 Controller • 2 x SAS ports supportimg SAS RAID 0 and 1 Marvell 88SE6111 Controller • 1 x Ultra DMA-133/100/66 port • 1 x External SATA 3.0 Gb/s port
LAN Features	• Dual Marvell 88E8056 PCI Express Gigabit LAN controllers
USB Connectivity	• 14 USB 2.0 ports (8 rear ports, 3 motherboard headers)
IEEE 1394 (FireWire)	• VIA VT6308 controller • Two IEEE 1394a ports (one rear port, one motherboard header)
Audio Solution	• ADI AD2000B 8-channel high-definition audio (HDA) codec • Coaxial / optical S/PDIF-out ports • DTS Surround Sensation UltraPC • ASUS Noise Filter
Rear I/O Connectors	• 1 x PS/2 keyboard / mouse combo port • 1 x S/PDIF Out (coaxial + optical) • 1 x External SATA • 1 x IEEE1394a • 2 x RJ45 LAN ports • 8 x USB 2.0 ports • 8-channel audio I/O
Internal I/O Connectors	• 1 x ATX 24-pin power connector • 1 x EATX 8-pin 12V power connector • 1 x 4-pin CPU fan connector • 3 x 3-pin chassis fan connectors • 1 x 3-pin power fan connectors • 1 x Floppy drive connector • 1 x Front panel audio connector • 1 x CD audio in header • 3 x USB 2.0 connectors (for 6 USB ports) • 3 x Onboard On/Off/CMOS reset buttons • 6 x Serial ATA II connectors • 1 x Front panel connector • 1 x Onboard power LED • 1 x ATA-133 IDE connector • 1 x IEEE1394a header • 1 x S/PDIF out header • 1 x Chassis intrusion connector • 1 x TPM connector • 1 x Power On switch • 1 x Reset switch
BIOS Features	• 16 MB Flash EEPROM • LAN Boot ROM • PnP, DMI 2.0, WfM 2.0, SM BIOS 2.4 support
Special Features	• ASUS TurboV Overclocking Utility • ASUS OC Palm • ASUS True 16+2 Phase Power Design • Express Gate SSD • ASUS EPU-6 Engine • ASUS AI NAP • ASUS Quiet Thermal Solution
Form Factor	• ATX (12" x 9.6", 30.5 cm x 24.4 cm)
Bundled Accessories	• 1 x 2-port USB 2.0, 1-port IEEE 1394 module • 6 x Serial ATA data cables • 2 x SAS cables • 1 x UltraDMA-133 cable • 1 x OC Palm kit (device + USB cable) • 1 x ASUS Q-Shield • 1 x Optional fan for water cooling / passive cooling only • 1 x ASUS Q-Connector Kit • 1 x ASUS SLI bridge connector

Opisanije (ru):

Informacje o produkcie (pol):

Galimi priedai (optional accesories, supplies):

Aptarti forume:

Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
