ASUS P6T SE Intel x58/1xPCI-Ex1/3xPCI-Ex16/2xPCI/6xDDR3 2000(O.C.)/1333/ 6xSATA2/ eSata x1 / ATA / 8-ch audio/12 USB2.0/GbE-LAN/ATX { P6T SE



Preks apibūdinimas/Item:

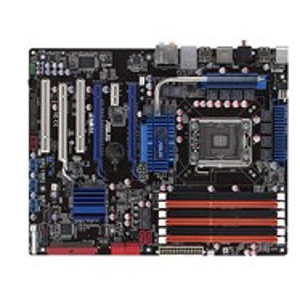

    ASUS P6T SE Intel x58/1xPCI-Ex1/3xPCI-Ex16/2xPCI/6xDDR3 2000(O.C.)/1333/ 6xSATA2/ eSata x1 / ATA / 8-ch audio/12 USB2.0/GbE-LAN/ATX { P6T SE
Gamintojas/Maker: ASUS
Modelis/Model: P6T-SE
Gamintojo Part/No: 041703
Nuoroda/URL link: http://www.asus.com/
Nuoroda Matrix Uab: http://www.deze.lt/products/ASUS_P6T-SE_041703.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
CPU support Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology
FSB Up to 6400 MT/s ; Intel® QuickPath Interconnection
Chipset Intel® X58 / ICH10R
Memory 6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066 Non-ECC,Un-buffered Memory
Expansion slots 3 x PCIe 2.0 x16 (at x16/x16/x4 mode) 1 x PCIe x1 2 x PCI
Storage Southbridge 6 xSATA 3 Gb/s ports Intel Matrix Storage Technology Support RAID 0,1,5,10 Marvell 88SE6320 2 x SAS (RAID 0 and 1) Marvell 88SE6111 1 xUltraDMA 133/100/66 for up to 2 PATA devices 1 xExternal SATA port (SATA On-the-Go)
LAN Dual Gigabit LAN controllers 2*Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2
Audio ADI® AD2000B 8 -Channel High Definition Audio CODEC - Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking - Coaxial / Optical S/PDIF out ports at back I/O
USB VIA® VT6308 controller supports 1 x 1394a ports (one at mid-board; one at back panel) 14 USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)
Special features Multi-language BIOS ASUS MyLogo 2
BIOS 16 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
I/O ports 1 x PS/2 Keyboard/ Mouse combo port 1 x S/PDIF Out (Coaxial + Optical) 1 x External SATA 1 x IEEE1394a 2 x RJ45 port 8 x USB 2.0/1.1 8-channel Audio I/O
On board I/O ports 3 x USB connectors support additional 6 USB ports 1 x Floppy disk drive connector 1 x IDE connector 6 x SATA connectors 2 x SAS connectors 1 x CPU Fan connector 3 x Chassis Fan connector 1 x Power Fan connector 1 x IEEE1394a connector Front panel audio connector 1 x S/PDIF Out Header Chassis Intrusion connector CD audio in 24-pin ATX Power connector 1 x 8-pin ATX 12V Power connector System Panel(Q-Connector)
Managebility WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories UltraDMA 133/100/66 cable 6 x Serial ATA cables 2 x SAS cables ASUS Q-Shield User's manual 2 in 1 Q-connector 1 x 2-port USB2.0 / 1-port IEEE1394 (4-pin) module 1 x SLI bridge cable 2 x Screw pillar 1 x Optional Fan for Water-Cooling or Passive-Cooling only
Support CD Drivers ASUS PC Probe II ASUS Update ASUS AI Suite Anti-virus software (OEM version) Image-Editing Suite
Form factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
