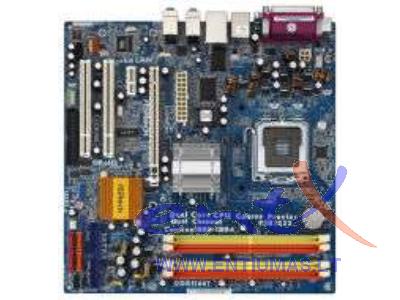

ASRock CONROE1333-1394, i945GC A2/FSB1333/4xDUAL DDR2-667/1xPCI-Ex16/2xPCI-Ex1/2xPCI/7.1ch audio/G-LAN/ATA/4xSATA2/mATX



Prekės apibūdinimas/Item:
 ASRock CONROE1333-1394, i945GC A2/FSB1333/4xDUAL DDR2-667/1xPCI-Ex16/2xPCI-Ex1/2xPCI/7.1ch audio/G-LAN/ATA/4xSATA2/mATX
Gamintojas/Maker: ASRock
Modelis/Model: CONROE1333-1394
Gamintojo Part/No: 017145
Nuoroda/URL link: http://www.asrock.com
Nuoroda Matrix Uab: http://www.deze.lt/products/CONROE1333-1394_017145.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty: 24 mėn
Aprašymas (ltu):
Description (eng):
Expansion slots: 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Accessories: Quick Installation Guide Support CD I/O Shield
- Floppy/ATA 100 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x HDMI_SPDIF cable (optional)
Chipset: Northbridge: Intel® 945GC A2
- Southbridge: Intel® ICH7
On board I/O ports: 4 x SATAII 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394
Audio: 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B / RTL8111C
- Supports Wake-On-LAN
CPU support: LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
- Compatible with all FSB1333*/1066/800/533MHz CPUs except Quad Core
&#
BIOS: 4Mb AMI BIOS
- AMI Legal BIOS
- Supports Plug and Play
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Other: Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Cha
I/O ports: I/O ASRock HD 8CH_1394 I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 1 x IEEE 1394 Port
- 4 x Ready-to-Use USB 2.0 Ports
-
Form factor: Micro ATX Form Factor: 9.6-in x 9.6-in 24.4 cm x 24.4 cm
Memory: Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII667/533
- Max. capacity: 4GB
Support CD: Drivers Utilities AntiVirus Software (Trial Version)
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume: http://www.matrix.lt/lt/forum/index.php
Brūkšninis kodas (EAN code): 4711140875002

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
