MATRIX UAB - prekės aprašymas/item description

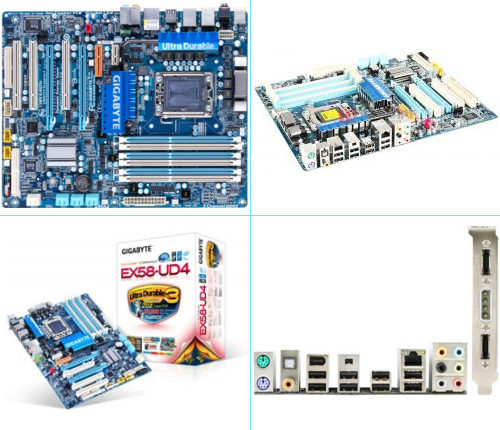

GIGABYTE GA-EX58-UD4 / Nehalem MB/ Intel Core i7/ X58 +ICH10R/ 6.4GT/S FSB/ 2*2.0 PCI-Ex16 +1* PCI-Ex16, 3*PCI/ 3ch 6x DDR3 DIMM/ 12 USB 2.0/ 8 SATA, 1PATA/ RAID/ 1*Gbe LAN/ Dual Bios/ 3*1394a/ ATX {

Prekės apibūdinimas/Item:

Gamintojas/Maker:

GIGABYTE

Modelis/Model:

GA-EX58-UD4

Gamintojo Part/No:

039628

Nuoroda/URL link:

http://www.gigabyte.com.tw/

Nuoroda Matrix Uab:

http://www.deze.lt/products/GIGABYTE_GA-EX58-UD4_039628 .htm

Aprašymas PDF:

http://www.deze.lt/products/

Naudojimosi instrukcija:

Svoris/Weight:

2.14 kg

Išmatavimai/Dimensions:

30.5 cm x 24.4 cm

Komplektacija/pakuotė:

Garantija/Warranty:

Aprašymas (ltu):

Modelis	• GA-EX58-UD4
Procesoriaus lizdo tipas	• Intel Socket B (LGA1366) • L3 cache varies with CPU
Lustų rinkinys	• Šiaurinis tiltas: Intel X58 Express • Pietinis tiltas: Intel ICH10R
Procesoriaus tipas	• Intel Core i7 Extreme • Intel Core i7
Magistralės sparta	• 4.8 GT/s, 6.4 GT/s
Atminties palaikymas	• 6 x 1.5V DDR3 240-pin DIMM lizdai • Maksimali atmintis 24 GB
Atminties tipas	• DDR3-2100+ • DDR3-1333 • DDR3-1066 • DDR3-800
PCI/PCI-E lizdai	• 2 x PCI Express x16 lizdas, (x16/x16) • 1 x PCI Express x4 lizdas • 1 x PCI Express x1 lizdas • 3 x PCI lizdai
Standžiojo disko palaikymas	Pietinis tiltas: • 6 x SATA 3Gb/s jungikliai (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) palaikantys iki 6 SATA 3Gb/s įrenginių • Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 GIGABYTE SATA2 chip: • 1 x IDE jungiklis palaikantis ATA-133/100/66/33 iki 2 IDE įrenginių • 2 x JMB322 chips (Smart Backup): Palaikymas SATA RAID 0, RAID 1, JBOD iTE IT8720 chip: • 1 x floppy disk drive jungiklis palaikantis 1 floppy disk įrenginį
Tinklo jungtis	• 1 x Realtek 8111D chips (10/100/1000 Mbit)
USB	• 12 USB 2.0 lizdų (4 lizdai plokštėje, 8 lizdai galinėje panelėje)
IEEE 1394 (FireWire)	• 3 x 1394a lizdai
Garso plokštė	• Realtek ALC888 codec • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF In/Out • Support for CD In
Galinės panelės I/O lizdai	• 1 x PS/2 keyboard port • 1 x PS/2 mouse port • 1 x coaxial S/PDIF Out connector • 1 x optical S/PDIF Out connector • 2 x IEEE 1394a port • 8 x USB 2.0/1.1 ports • 1 x RJ-45 port • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side • Speaker Out/Line In/Line Out/Microphone)
Vidinės I/O jungtys	• 1 x 24-pin ATX main power jungiklis • 1 x 8-pin ATX 12V power jungiklis • 1 x floppy disk drive jungiklis • 1 x IDE jungiklis • 8 x SATA 3Gb/s jungiklių • 1 x CPU fan header • 3 x system fan headers • 1 x power fan header • 1 x North Bridge fan header • 1 x front panel header • 1 x front panel audio header • 1 x CD In jungiklis • 1 x S/PDIF In header • 1 x S/PDIF Out header • 2 x USB 2.0/1.1 headers • 1 x IEEE 1394a headers • 1 x serial port header • 1 x power LED header • 1 x chassis intrusion header • 1 x clearing CMOS jumper
BIOS	• 2 x 8 Mbit flash • Use of licensed AWARD BIOS • Support for DualBIOS™ • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Description (eng):

Model	• GA-EX58-UD4
CPU Socket	• Intel Socket B (LGA1366)
Chipset	• North Bridge: Intel® X58 Express Chipset • South Bridge: Intel® ICH10R
Supported Processors	• Intel Core i7 Extreme • Intel Core i7
System Bus	• 4.8GT/s, 6.4GT/s
Memory Type Support	• Six DDR3 240-pin DIMM slots • Triple-channel support • Maximum 24 GB
Memory Speeds	• DDR3-2100+ • DDR3-1333 • DDR3-1066 • DDR3-800
Expansion Slots	• 2 x PCI Express x16 slot, (x16/x16) • 1 x PCI Express x4 slot • 1 x PCI Express x1 slot • 3 x PCI slots
Storage Connectivity Options	South Bridge: • 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices • Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 GIGABYTE SATA2 chip: • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices • 2 x JMB322 chips (Smart Backup): Support for SATA RAID 0, RAID 1 and JBOD iTE IT8720 chip: • 1 x floppy disk drive connector supporting up to 1 floppy disk drive
LAN Features	• 1 x Realtek 8111D chip (10/100/1000 Mbit)
USB Connectivity	• 12 USB 2.0 ports (4 ports at mid-board, 8 ports at back panel)
Special features:	• Support for @BIOS • Support for Q-Flash • Support for Virtual Dual BIOS • Support for Download Center • Support for Xpress Install • Support for Xpress Recovery2 • Support for EasyTune (Note 4) • Support for Dynamic Energy Saver Advanced • Support for Time Repair • Support for Q-Share
Audio Solution	• Realtek ALC888 codec • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF In/Out • Support for CD In
Rear I/O Connectors	• 1 x PS/2 keyboard port • 1 x PS/2 mouse port • 1 x coaxial S/PDIF Out connector • 1 x optical S/PDIF Out connector • 1 x IEEE 1394a port • 1 x clearing CMOS switch • 8 x USB 2.0/1.1 ports • 1 x RJ-45 port • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side • Speaker Out/Line In/Line Out/Microphone)
Internal I/O Connectors	• 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 1 x floppy disk drive connector • 1 x IDE connector • 8 x SATA 3Gb/s connectors • 1 x CPU fan header • 3 x system fan headers • 1 x power fan header • 1 x North Bridge fan header • 1 x front panel header • 1 x front panel audio header • 1 x CD In connector • 1 x S/PDIF In header • 1 x S/PDIF Out header • 2 x USB 2.0/1.1 headers • 1 x IEEE 1394a headers • 1 x serial port header • 1 x power LED header • 1 x chassis intrusion header • 1 x clearing CMOS jumper
BIOS Features	• 2 x 8 Mbit flash • Use of licensed AWARD BIOS • Support for DualBIOS™ • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Form Factor	• ATX (12" x 9.6", 30.5 cm x 24.4 cm)

Opisanije (ru):

Informacje o produkcie (pol):

Galimi priedai (optional accesories, supplies):

Aptarti forume:

http://www.matrix.lt/lt/forum/index.php

Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
