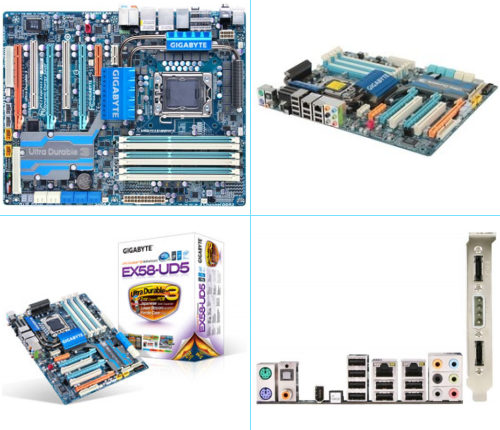

GIGABYTE GA-EX58-UD5 1.0 { GA-EX58-UD5 }

Prekės apibūdinimas/Item:

GIGABYTE GA-EX58-UD5 1.0 { GA-EX58-UD5 }

Gamintojas/Maker:

GIGABYTE

Modelis/Model:

GA-EX58-UD5

Gamintojo Part/No:

032262

Nuoroda/URL link:

http://www.gigabyte.com.tw/

Nuoroda Matrix Uab:

http://www.deze.lt/products/GIGABYTE_GA-EX58-UD5_032262.htm

Aprašymas PDF:

http://www.deze.lt/products/

Naudojimosi instrukcija:



Svoris/Weight:

 2.32 kg

Išmatavimai/Dimensions:

30.5 cm x 24.4 cm

Komplektacija/pakuotė:



Garantija/Warranty:



Aprašymas (ltu):

Modelis

• GA-EX58-UD5

Procesoriaus lizdo tipas

• Intel Socket B (LGA1366)

• L3 cache varies with CPU

Lustų rinkinys

• Šiaurinis tiltas: Intel X58 Express
• Pietinis tiltas: Intel ICH10R

Procesoriaus tipas

• Intel Core i7 Extreme
• Intel Core i7

Magistralės sparta

• 4.8 GT/s, 6.4 GT/s

Atminties palaikymas

• 6 x 1.5V DDR3 240-pin DIMM lizdai
• Maksimali atmintis 24 GB

Atminties tipas

• DDR3-2100+
• DDR3-1333
• DDR3-1066

• DDR3-800

PCI/PCI-E lizdai

• 2 x PCI Express x16 lizdai, (x16/x16)

• 1 x PCI Express x8 lizdas (x16/x16/x8)

• 1 x PCI Express x4 lizdas

• 1 x PCI Express x1 lizdas

• 2 x PCI lizdai

Standžiojo disko palaikymas

Pietinis tiltas:

• 6 x SATA 3Gb/s jungikliai (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) palaikantys iki 6 SATA 3Gb/s įrenginių

• Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10



GIGABYTE SATA2 chip:

• 1 x IDE jungiklis palaikantis ATA-133/100/66/33 iki 2 IDE įrenginių

• 2 x JMB322 chips (Smart Backup):

• 4 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1, GSATA2_2, GSATA2_3) supporting up to 4 SATA 3Gb/s devices (Note 4)

• Support for SATA RAID 0, RAID 1 and JBOD



Palaikymas SATA RAID 0, RAID 1,  JBOD

iTE IT8720 chip:

• 1 x floppy disk drive jungiklis palaikantis 1 floppy disk įrenginį

Tinklo jungtis

• 2 x Realtek 8111D chips (10/100/1000 Mbit)

USB

• 12 USB 2.0 lizdų (4 lizdai plokštėje, 8 lizdai galinėje panelėje)

IEEE 1394 (FireWire)

• 3 x 1394a lizdai

Garso plokštė

• Realtek ALC888 codec

• High Definition Audio

• 2/4/5.1/7.1-channel

• Support for S/PDIF In/Out

• Support for CD In

Galinės panelės I/O lizdai

• 1 x PS/2 keyboard port

• 1 x PS/2 mouse port

• 1 x coaxial S/PDIF Out connector

• 1 x optical S/PDIF Out connector

• 2 x IEEE 1394a port

• 8 x USB 2.0/1.1 ports

• 2 x RJ-45 port

• 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side • Speaker Out/Line In/Line Out/Microphone)

Vidinės I/O jungtys

• 1 x 24-pin ATX main power jungiklis

• 1 x 8-pin ATX 12V power jungiklis

• 1 x floppy disk drive jungiklis

• 1 x IDE jungiklis

• 10 x SATA 3Gb/s jungiklių

• 1 x CPU fan header

• 3 x system fan headers

• 1 x power fan header

• 1 x North Bridge fan header

• 1 x front panel header

• 1 x front panel audio header

• 1 x CD In jungiklis

• 1 x S/PDIF In header

• 1 x S/PDIF Out header

• 2 x USB 2.0/1.1 headers

• 2 x IEEE 1394a headers

• 1 x serial port header

• 1 x power LED header

• 1 x chassis intrusion header

• 1 x clearing CMOS jumper

BIOS

• 2 x 8 Mbit flash

• Use of licensed AWARD BIOS

• Support for DualBIOS™

• PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Description (eng):

Model

• GA-EX58-UD5

CPU Socket

• Intel Socket B (LGA1366)

Chipset

• North Bridge: Intel® X58 Express Chipset

• South Bridge: Intel® ICH10R

Supported Processors

• Intel Core i7 Extreme
• Intel Core i7

System Bus

• 4.8GT/s, 6.4GT/s

Memory Type Support

• Six DDR3 240-pin DIMM slots
• Triple-channel support
• Maximum 24 GB

Memory Speeds

• DDR3-2100+
• DDR3-1333
• DDR3-1066

• DDR3-800

Expansion Slots

• 2 x PCI Express x16 slots, (x16/x16)

• 1 x PCI Express x8 slot (x16/x16/x8)

• 1 x PCI Express x4 slot

• 1 x PCI Express x1 slot

• 3 x PCI slots

Storage Connectivity Options

South Bridge:

• 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices

• Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10



GIGABYTE SATA2 chip:

• 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

• 2 x JMB322 chips (Smart Backup):

• 4 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1, GSATA2_2, GSATA2_3) supporting up to 4 SATA 3Gb/s devices (Note 4)

• Support for SATA RAID 0, RAID 1 and JBOD



Support for SATA RAID 0, RAID 1 and JBOD

iTE IT8720 chip:

• 1 x floppy disk drive connector supporting up to 1 floppy disk drive

LAN Features

• 2 x Realtek 8111D chip (10/100/1000 Mbit)

USB Connectivity

• 12 USB 2.0 ports (4 ports at mid-board, 8 ports at back panel)

Special features:

• Support for @BIOS

• Support for Q-Flash

• Support for Virtual Dual BIOS

• Support for Download Center

• Support for Xpress Install

• Support for Xpress Recovery2

• Support for EasyTune (Note 4)

• Support for Dynamic Energy Saver Advanced

• Support for Time Repair

• Support for Q-Share

Audio Solution

• Realtek ALC888 codec

• High Definition Audio

• 2/4/5.1/7.1-channel

• Support for S/PDIF In/Out

• Support for CD In

Rear I/O Connectors

• 1 x PS/2 keyboard port

• 1 x PS/2 mouse port

• 1 x coaxial S/PDIF Out connector

• 1 x optical S/PDIF Out connector

• 1 x IEEE 1394a port

• 1 x clearing CMOS switch

• 8 x USB 2.0/1.1 ports

• 2x RJ-45 port

• 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side • Speaker Out/Line In/Line Out/Microphone)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x floppy disk drive connector

• 1 x IDE connector

• 10 x SATA 3Gb/s connectors

• 1 x CPU fan header

• 3 x system fan headers

• 1 x power fan header

• 1 x North Bridge fan header

• 1 x front panel header

• 1 x front panel audio header

• 1 x CD In connector

• 1 x S/PDIF In header

• 1 x S/PDIF Out header

• 2 x USB 2.0/1.1 headers

21 x IEEE 1394a headers

• 1 x serial port header

• 1 x power LED header

• 1 x chassis intrusion header

• 1 x clearing CMOS jumper

BIOS Features

• 2 x 8 Mbit flash

• Use of licensed AWARD BIOS

• Support for DualBIOS™

• PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Form Factor

• ATX (12" x 9.6", 30.5 cm x 24.4 cm)
