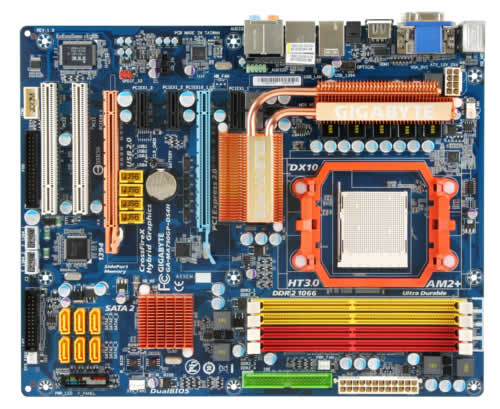

GIGABYTE GA-MA790GP-DS4H/ AM2+ 790GX+SB750 / 5200 FSB/ 2xPCI-E x16/ 2xPCI/ Dual 4xDDRII 1066/800/667/VIDEO/ 8-ch audio/ 6xSATA / 1xPATA/ 1xGb-e LAN/ATX { GA-MA790GP-DS4H }



Preks apibūdinimas/Item:
 GIGABYTE GA-MA790GP-DS4H/ AM2+ 790GX+SB750 / 5200 FSB/ 2xPCI-E x16/ 2xPCI/ Dual 4xDDRII 1066/800/667/VIDEO/ 8-ch audio/ 6xSATA / 1xPATA/ 1xGb-e LAN/ATX { GA-MA790GP-DS4H }
Gamintojas/Maker: GIGABYTE
Modelis/Model: GA-MA790GP-DS4H
Gamintojo Part/No: 029147
Nuoroda/URL link: http://www.gigabyte.com.tw/
Nuoroda Matrix Uab: http://www.deze.lt/products/GIGABYTE_GA-MA790GP-DS4H_029147.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  1. Supports AMD Phenom/ Athlon series processors
  2. Dual Channel DDR2 1066 for remarkable system performance
  3. Built-in 128MB DDR3 1333MHz SidePort Memory
  4. Integrated ATI Radeon HD3300 graphics (DirectX10)
  5. Ultimate graphics performance with dual PCI-E 2.0 x16 interface with ATI CrossFireX/ Hybrid CrossFireX support
  6. Features high speed Gigabit Ethernet and IEEE1394
  7. High quality 106dB SNR ALC889A HD audio
  8. Supports Dolby Home Theater audio to create a stunning surround sound listening experience.
  9. Integrated HDMI/ DVI interface with HDCP
  10. Patented DualBIOS with dual hardware BIOS protection
  11. All Japanese manufactured solid capacitors

CPU
  1. Support for Socket AM2+/ AM2 processors: AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™ processor
Hyper Transport Bus
  1. 5200/2000 MT/s
Chipset
  1. North Bridge: AMD 790GX
  2. South Bridge: AMD SB750
Memory
  1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for DDR2 1066 (Note 2)/800/667 MHz memory modules
Integrated Memory
  1. 128MB DDR3 SidePort memory
Audio
  1. Realtek ALC889A codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby® Home Theater (Note 3)
  5. Support for S/PDIF In/Out
  6. Support for CD In
LAN
  1. Realtek 8111C chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) (Note 4)
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
    (The PCIEX16_1 and PCIEX8_1 slots support ATI Hybrid CrossFireX technology, ATI CrossFireX technology and conform to PCI Express 2.0 standard.)
  3. 3 x PCI Express x1 slots
  4. 2 x PCI slots
Storage Interface South Bridge:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD
iTE IT8718 chip:
    1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394 T.I. TSB43AB23 chip
  1. Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
USB Integrated in the South Bridge
  1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 6 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 2 x system fan header
  8. 1 x power fan header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x CD In connector
  12. 1 x S/PDIF In/Out header
  13. 2 x IEEE 1394a header
  14. 4 x USB 2.0/1.1 headers
  15. 1 x parallel port header
  16. 1 x serial port header
  17. 1 x chassis intrusion header
  18. 1 x power LED header
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port (Note 5)
  5. 1 x HDMI port
  6. 1 x optical S/PDIF Out connector
  7. 1 x IEEE 1394a port
  8. 4 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
H/W Monitoring System voltage detection
  1. CPU/System temperature detection
  2. CPU/System fan speed detection
  3. CPU overheating warning
  4. CPU/System fan fail warning
  5. CPU/System fan speed control (Note 5)
BIOS
  1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Download Center
  3. Support for Q-Flash
  4. Support for EasyTune (Note 7)
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for Virtual Dual BIOS
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft Windows Vista/ XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
