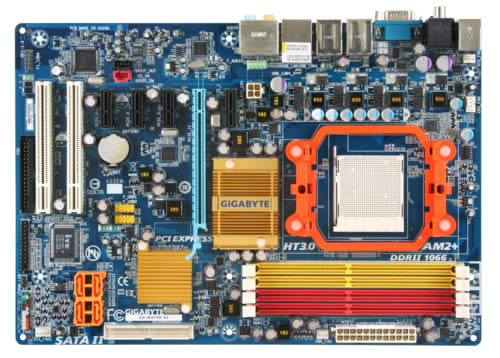

GIGABYTE MA770-S3 AM2+ 790FX+SB600 / 4000 FSB/ 2xPCI-E x16/ 2xPCI/PCI-Ex1/ PCIDual 4xDDRII 1066/800/667/8-ch audio/ VIDEO/ 8xSATAII / 1xPATA/ 2xGb/Raid 0,1,0+1/G- LAN/ATX



Preks apibūdinimas/Item:
   GIGABYTE MA770-S3 AM2+ 790FX+SB600 / 4000 FSB/ 2xPCI-E x16/ 2xPCI/PCI-Ex1/ PCIDual 4xDDRII 1066/800/667/8-ch audio/ VIDEO/ 8xSATAII / 1xPATA/ 2xGb/Raid 0,1,0+1/G- LAN/ATX
Gamintojas/Maker: GIGABYTE
Modelis/Model: MA770-S3
Gamintojo Part/No: 024221
Nuoroda/URL link: http://www.gigabyte.com.tw/
Nuoroda Matrix Uab: http://www.deze.lt/products/GIGABYTE_MA770-S3_024221.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
  1. Supports AMD Phenom / Athlon series processors
  2. Solid capacitors design in CPU VRM
  3. Dual Channel DDR2 1066* memory support for remarkable system performance
  4. PCI-E 2.0 x16 graphics interface supports for extreme gaming performance
  5. Integrated SATA 3Gb/s with RAID function
  6. Features high speed Gigabit Ethernet and IEEE1394
  7. High quality 8-ch High Definition audio

CPU
  1. Support for Socket AM2+/ AM2 processors: AMD Phenom™FX processor/ AMD Phenom™ processor/ AMD Athlon™ 64 FX processor/AMD Athlon™ 64 X2 Dual-Core processor/AMD Athlon™ 64 processor/AMD Sempron™ processor
Hyper Transport Bus
  1. 5200/2000 MT/s
Chipset
  1. North Bridge: AMD 770
  2. South Bridge: AMD SB600
Memory
  1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for DDR2 1066 (Note 2)/800/667 MHz memory modules
  4. Support ECC memory (Note 3)
Audio
  1. Realtek ALC888 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In/Out
  5. Support for CD In
LAN
  1. Realtek 8111B chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
  2. 4 x PCI Express x1 slots
  3. 2 x PCI slots
Storage Interface South Bridge:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3) supporting up to 4 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1 and RAID 0+1
iTE IT8718 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394 T.I. TSB43AB23 chip:
  1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a headers)
USB Integrated in the South Bridge:
  1. Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 4 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 2 x system fan headers
  8. 1 x power fan header
  9. 1 x North Bridge fan header
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x CD In connector
  13. 1 x S/PDIF In header
  14. 1 x S/PDIF Out header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x IEEE 1394a header
  17. 1 x parallel port header
  18. 1 x power LED header
  19. 1 x chassis intrusion header
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 1 x serial port
  6. 6 x USB 2.0/1.1 ports
  7. 2 x IEEE 1394a ports
  8. 1 x RJ-45 port
  9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8718 chip
H/W Monitoring System voltage detection:
  1. CPU/System temperature detection
  2. CPU/System/Power fan speed detection
  3. CPU overheating warning
  4. CPU/System/Power fan fail warning
  5. CPUfan speed control
BIOS
  1. 1 x 4 Mbit flash
  2. Use of licensed AWARD BIOS
  3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Download Center
  3. Support for Q-Flash
  4. Support for EasyTune (Note 4)
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for Virtual Dual BIOS
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft Windows Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 21.0cm
Opisanije (ru):
Informacje o produkcie (pol):
Galimi priedai (optional accesories, supplies):
Aptarti forume:
Brūkšninis kodas (EAN code):

Gamintojas pasilieka teisę keisti specifikacijas, be išankstinio įspėjimo.
Product specification is subject to change without prior notice.
