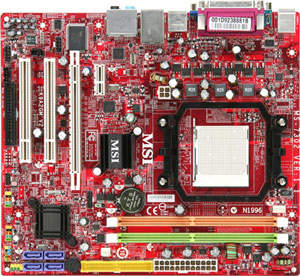

MSI K9A2GM-FV3, AM2+Phenom,740G+HD2100/2600HT/2xDDR2-800/PCI-E x16/PCI-Ex1/2 xPCI/ATA/4xSATA2 RAID/VGA DX9/7.1ch audio/G-LAN/D-SUB/TPM/mATX { K9A2GM-F V3 }



Preks apibūdinimas/Item:
   MSI K9A2GM-FV3, AM2+Phenom,740G+HD2100/2600HT/2xDDR2-800/PCI-E x16/PCI-Ex1/2 xPCI/ATA/4xSATA2 RAID/VGA DX9/7.1ch audio/G-LAN/D-SUB/TPM/mATX { K9A2GM-F V3 }
Gamintojas/Maker: MSI (MICROSTAR)
Modelis/Model: K9A2GM-FV3
Gamintojo Part/No: 032457
Nuoroda/URL link: http://global.msi.com.tw/index.php
Nuoroda Matrix Uab: http://www.deze.lt/products/MSI_K9A2GM-FV3_032457.htm
Aprašymas PDF: http://www.deze.lt/products/
Naudojimosi instrukcija:
Svoris/Weight:
Išmatavimai/Dimensions:
Komplektacija/pakuotė:
Garantija/Warranty:
Aprašymas (ltu):
Description (eng):
• 9.6 in (L) x 9 in (W) Micro-ATX
• 2 DIMMs w/ DDR2 800+ up to 4GB
•

1 PCI-E 16X; 1 PCI-E X1; 2 PCI; 8 USB
•

Realtek® ALC888 Flexible 7.1-channel audio
• Pure Video HD
•

GbLAN; SATAII; ATA133
•

Live Update; Dual Corecell; MSI Dual CoreCenter; DOT; AMD Cool'n'Quiet™




CPU

• Supports 64-bit AMD® Phenom processor (Socket AM2+)
• Supports 64-bit AMD® Sempron, Athlon™ 64 / Athlon 64 X2 processor (Socket AM2)
• Support FSB 1000MHz
• For latest information on CPU support list, please check http://global.msi.com.tw/index.php?func=cpuform for more detail

FSB

• AM2 CPU supports HyperTransport 1.0/2.0 supporting speed up to 1000MHz

Chipset
  AMD® 740G and Radeon 2100 Chipset

Main Memory

• Supports Dual DDR2 533/667/800+
• 2 DDRII DIMMs (240pin / 1.8V)
• Supports a maximum memory size up to 4GB

Slots

• One PCI Express X16 slot
• One PCI Express X1 slot
• Two PCI slots, support 3.3V/5V PCI bus interface

On-Board IDE

• One IDE port
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

• 4 SATA II (1~4) ports
- Supports storage and data transfers at up to 3Gb/s

RAID Function

• SATAII 1~4 support RAID 0, 1, and 0+1 mode

Audio

• Chipset integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Realtek PCI-E GbLAN controller 8111C
- Integrated Fast Ethernet MAC and PHY in single chip
- Support 10/100/1000 Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connector

- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 IDE connector
- Clear CMOS jumper
- 1 x SPDIF-out header
- 1 x TPM module header

Back Panel I/O Ports

- 1 x HDMI port
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x Graphics Card Port

Dimension
  9.6 in (L) x 9 in(W) M-ATX Form Factor

Mounting
  6 mounting holes
